Removal
1.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
2.

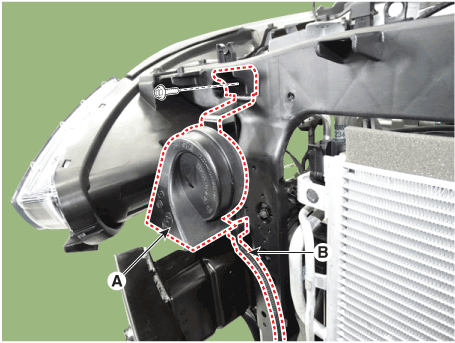

Remove the horn (A) after disconnecting the connector (B) and loosening the mounting bolt.
[Low-pitch horn]

Installation
1.
After connecting the horn connectors, install both low-pitch horn.
2.
Install the front bumper cover.
Inspection
1.
The relay on the horn of this vehicle is implanted into the metal core block PCB of the engine room relay block.

The semi-conductor type relay inserted in the PCB is impossible to replace. If the relay needs to be replaced, replace the metal core box and conduct a test on it.
