Hyundai i-30: Charging System / Schematic diagrams

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Electrical System / Charging System / Schematic diagrams

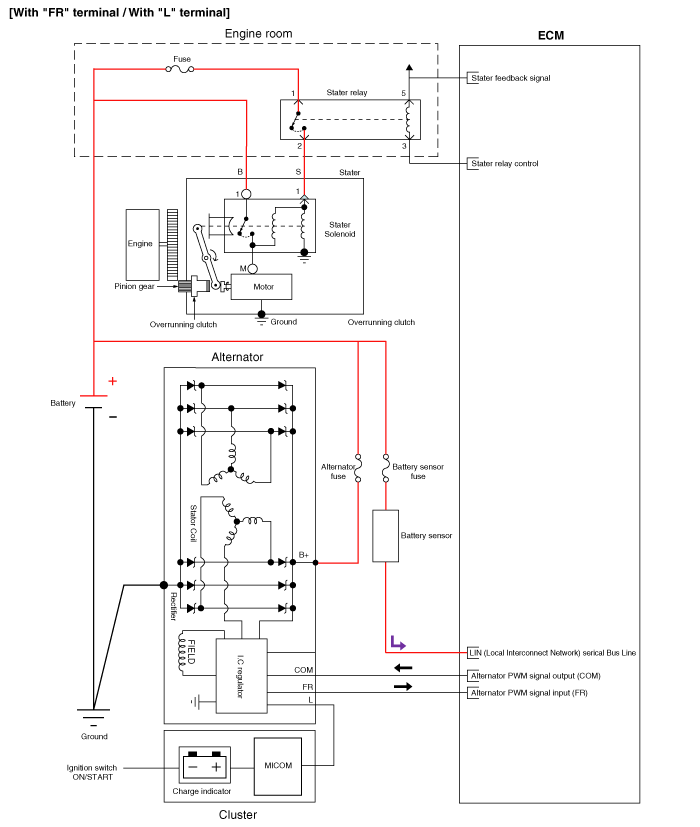

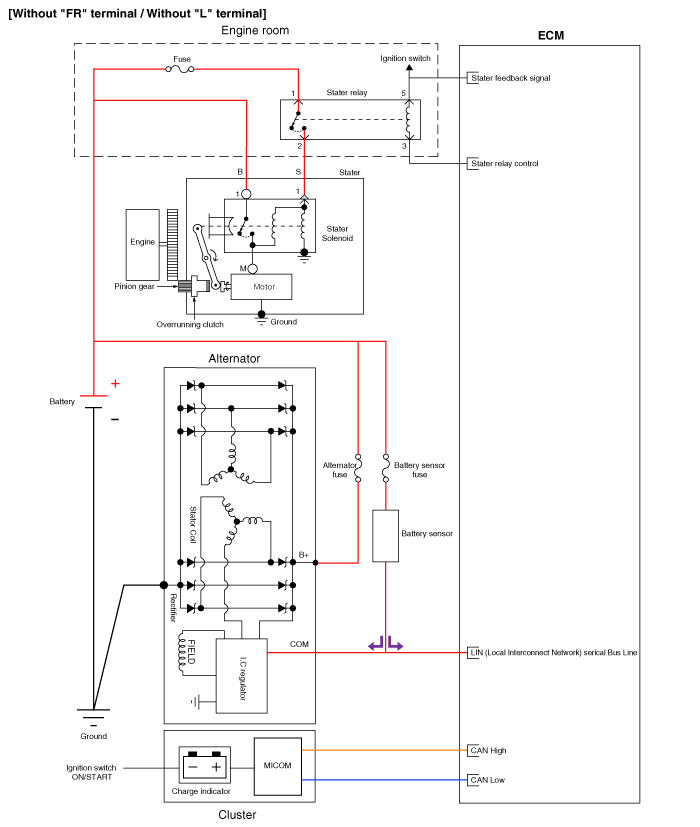

Circuit Diagram

    Troubleshooting

    Troubleshooting    • Be careful not to short-circuit the wiring by the body or other wirings...

    Repair procedures

    Inspection Inspection Item • Battery efficiency inspection • Battery voltage inspection • Charging voltage insptection • General inspection • Terminal tightening state inspection • Engine/ transaxle ground state inspection • Wiring harness ground state inspection • Electrical Specified Value Inspection • Vehicle parasitic current inspection • Battery capacity inspection Battery Efficiency Inspection    • Check that the battery cables are connected to the correct terminals...

    Other information:

    Hyundai i30 (PD) 2018-2025 Service Manual: Starter


    Description and operation Description The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch, ignition lock switch, connection wires and the battery cable. When the ignition key is turned to the start position, current flows and energizes the starter motor's solenoid coil...

    Hyundai i30 (PD) 2018-2025 Service Manual: Rear Corner Radar Unit


    Specifications Specifications Items Blind-Spot Collision Warning (BCW) Blind-Spot Collision- Avoidance Assist-Rear (BCA-R) Rated voltage DC 12V Operating voltage 9V - 16V Operating speed 20 km/h - 255 km/h 60 km/h - 200 km/h Sensible distance 70m Curvature radius Start : More than 100m Start : More than 625m Stop : Less than 70m Stop : Less than 588m Frequency 24 GHz Numbers 2EA Items Rear Cross-Traffic Collision Warning (RCCW) Rear Cross-Traffic Collision- Avoidance Assist (RCCA) Rated voltage DC 12V Operating voltage 9V - 16V Operating speed 0 km/h - 10 km/h Sensible distance 25m Curvature radius - Frequency 24 GHz Numbers 2EA Items Safe Exit Assist (SEA) Rated voltage DC 12V Operating voltage 9V - 16V Operating speed 0 km/h - 3 km/h Sensible distance 25m Curvature radius - Frequency 24GHz Numbers 2EA Schematic diagrams Circuit Diagram [5Door] [Wagon] [Fastback] Repair procedures Removal 1...
