Special Service Tools
Tool
(Number and Name)
Illustration
Use
09200-3N000
Engine support fixture
(Beam)

Removal and installation of the transmission.
Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S000).
A: 09200-2S000
B: 09200-2S100
C: 09200-2S200
Engine support fixture
(Supporter)

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-38001/3N000) with the supporter (SST No. : 09200-2S000).
09200-2W000
Adaptor

Removal and installation of the transaxle.
Use this beam (SST No. : 3N000) with the supporter (SST No. : 09200-2S000).
09200-K6100
Engine hanger

Removal and installation of the transaxle.
Oil seal installer
09453-3L240

Used for installing differential oil seal Used with the handle (09231-H1100)
Handle
09231-H1100

Used for installing differential oil seal
Used with the installer (09453-3L240)
Inhibitor switch guide pin
09480-A3800

Used for fixing "N" range when installing inhibitor switch
Dual clutch remover
09430-C1180

Used for removing dual clutch assembly
Dual clutch installer
09430-2A240

Used for installing dual clutch assembly
Clutch actuator remover & installer
0K430-Q5100

Removal and installation of the clutch actuator assembly.
Clutch actuator adjuster
0K430-Q5300

Used for adjusting clutch actuator

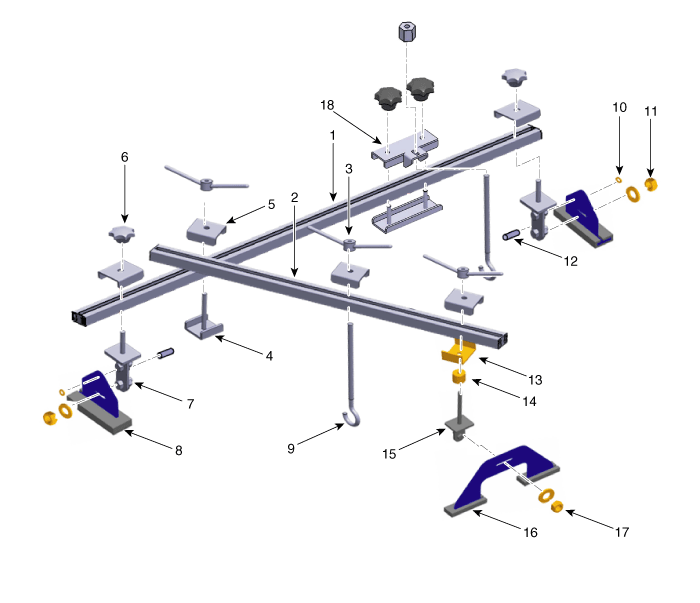

※ Engine support fixture special tool assembly drawing

1. 09200-3N000(Main bar)
2. 09200-3N000(Sub bar)
3. 09200-3N000(Handle)
4. 09200-3N000(Stopper)
5. 09200-3N000(Stopper)
6. 09200-3N000(Knobe)
7. 09200-3N000(Adapter)
8. 09200-2S000(Supporter)
9. 09200-3N000(Hanger)
10. 09200-3N000(Clip)
11. 09200-3N000(Nut)
12. 09200-3N000(Pin)
13. 09200-2S000(Stopper)
14. 09200-2S000(Spacer)
15. 09200-2S000(Adapter)
16. 09200-2S000(Supporter)
17. 09200-2S000(Nut)
18. 09200-4X000(Adapter)
