Hyundai i-30: Panorama sunroof / Tilting the sunroof
Hyundai i30 (PD) 2018-2025 Owner's Manual / Convenient features of your vehicle / Panorama sunroof / Tilting the sunroof
When the sunshade is closed
If you push the sunroof control lever upward, the sunshade will slide open then the sunroof glass will tilt open.
To stop the sunroof movement at any point, push the sunroof control lever either forward or backward momentarily.
When the sunshade is opened

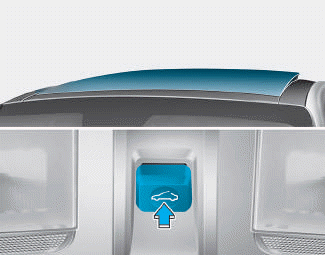

If you push the sunroof control lever upward, the sunroof glass will tilt open.
To stop the sunroof movement at any point, push the sunroof control lever either forward or backward momentarily.
Sliding the sunroof
When the sunshade is closed
If you push the sunroof control lever
backward past the first detent, the
sunshade will slide all the way open
and then the sunroof glass will slide
all the way open...
Closing the sunroof
To close sunroof glass
Push the sunroof control lever forward
to the first detent position.
To close sunroof glass with
sunshade
Push the sunroof control lever forward
to the second detent position...
