Front lamps

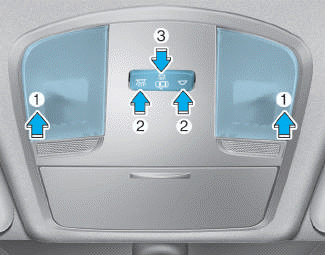

Hyundai i30. Front & Rear lamps

(1) Front Map Lamp
(2) Front Room Lamp
(3) Front Door Lamp

Front map lamp

Press the map lamp lens (1) to turn ON the map lamp. Re-press the map lamp lens to turn OFF the map lamp.

Front room lamp

Hyundai i30. Front & Rear lamps:

Press the button to turn ON the room lamp for the front/rear seats.

Hyundai i30. Front & Rear lamps:

Press the button to turn OFF the room lamp for the front/rear seats.

Front door lamp (Hyundai i30. Front & Rear lamps)

The room lamp for the front/rear seats is automatically turned ON for approximately 30 seconds, when a door is opened.

The room lamp for the front/rear seats is automatically turned ON for approximately 15 seconds, when the remote key (smart key) unlocks the doors. The room lamp fades out, when the ignition switch is placed to the ON position in 15 seconds. The room lamp remains ON up to 20 minutes, when a door is opened with the ignition switch in the either the ACC or OFF position.

Rear lamps

Hyundai i30. Front & Rear lamps

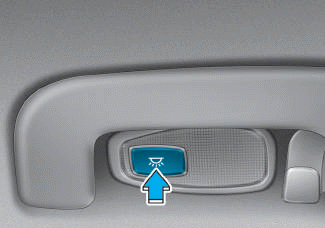

■ Type A

Hyundai i30. Front & Rear lamps

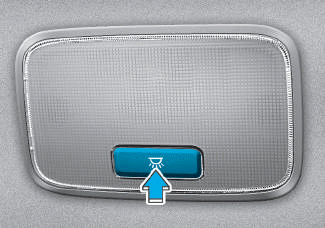

■ Type B

Rear room lamp switch :

Press this button to turn the room lamp on and off.

NOTICE

Do not leave the lamp switches on for an extended period of time when the engine is turned off.
