Hyundai i-30: Front Door / Front Door Outside Handle

Hyundai i30 (PD) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle

Components and components location

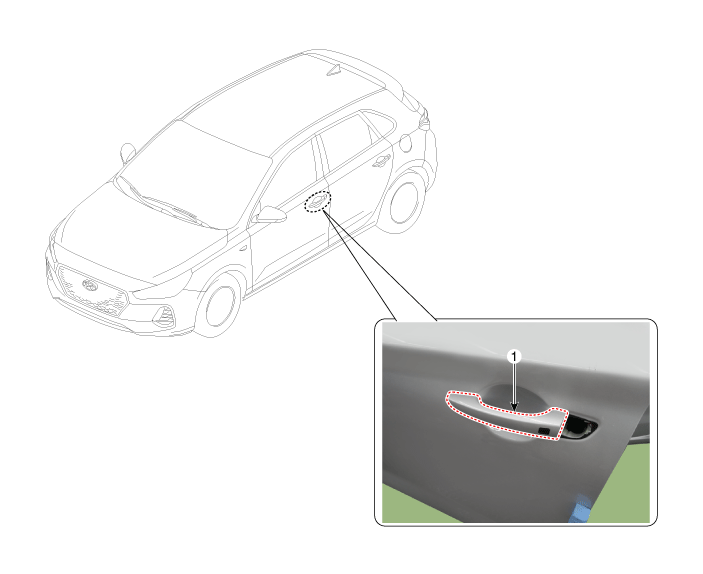

Component Location

1. Front door outside handle


Repair procedures
Replacement
1.

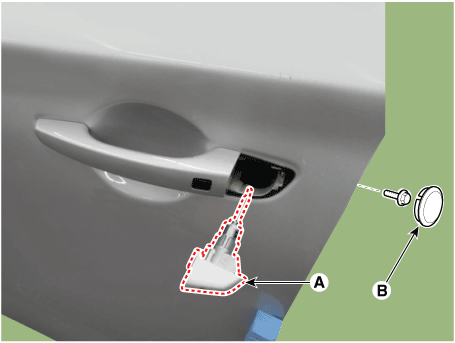

Remove the plug hole (B).
2.
After loosening the mounting bolt, remove the front door outside handle cover (A).
Tightening torque :
6.5 - 8.8 N.m (0.7 - 0.9 kgf.m, 5.1 - 6.5 lb-ft)

3.

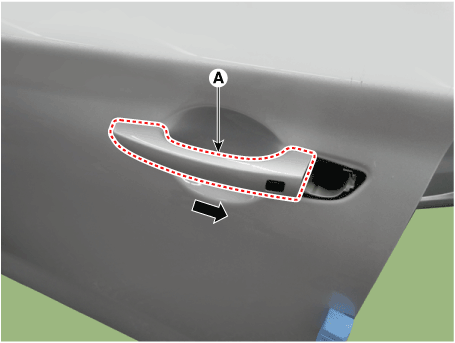

Remove the front door outside handle (A) by sliding it forward.

4.

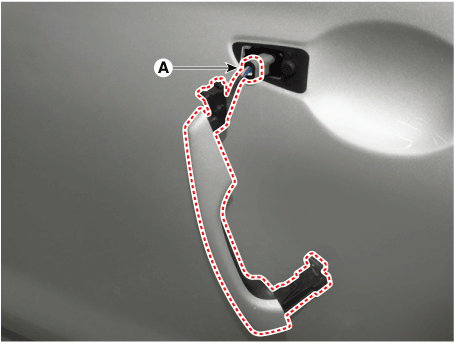

Disconnect the front door outside handle connector (A) by pushing the locking pin.

5.
To install, reverse removal procedure.

Make sure the connector is connected properly.
Make sure the door locks / unlocks and opens / closes properly.
Be sure to install the outside handle pad (A) between the outside handle and the door panel.
