Hyundai i-30: Front seats / Manual adjustment

Hyundai i30 (PD) 2018-2024 Owner's Manual / Safety system of your vehicle / Seats / Front seats / Manual adjustment

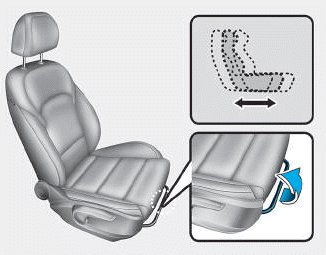

Forward and rearward adjustment

Hyundai i30. Manual adjustment

To move the seat forward or rearward:

1. Pull up the seat slide adjustment lever and hold it.

2. Slide the seat to the position you desire.

3. Release the lever and make sure the seat is locked in place. Move forward and rearward without using the lever. If the seat moves, it is not locked properly.

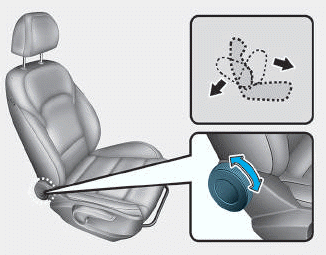

Seatback angle

Hyundai i30. Manual adjustment

To recline the seatback:

1.Roll the seatback knob rearward.

2.Adjust the seatback to the position you desire.

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protections of your restraint system (seat belts and/or air bags) is greatly reduced by reclining your seatback.

WARNING

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Drivers and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger’s hips will slide under the lap belt or the passenger’s neck will strike the shoulder belt.

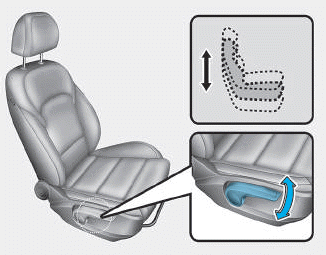

Seat cushion height

Hyundai i30. Manual adjustment

To change the height of the seat cushion:

  • Push down the lever several times, to lower the seat cushion.
  • Pull up the lever several times, to raise the seat cushion.

    Front seats

    The front seat can be adjusted by using the control lever (or knob) or switches located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel...

    Power adjustment

    WARNING NEVER allow children in the 2 vehicle unattended. The power seats are operable when the engine is turned off. NOTICE To prevent damage to the seats: Always stop adjusting the seats when the seat has been adjusted as far forward or rearward as possible...
