Hyundai i-30: Front Seat Belt / Front Seat Belt Buckle
Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle
Components and components location

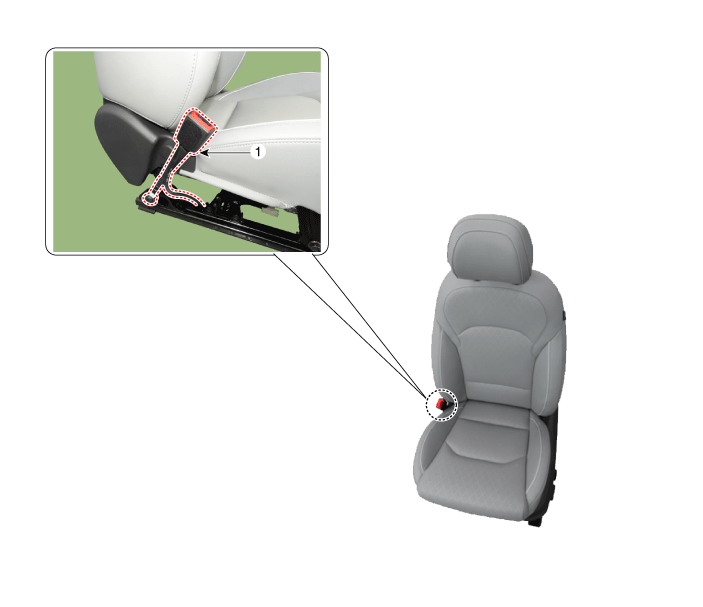

| Component Location |
| 1. Front seat
belt buckle |
Repair procedures
| Replacement |
| 1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
| 2. |

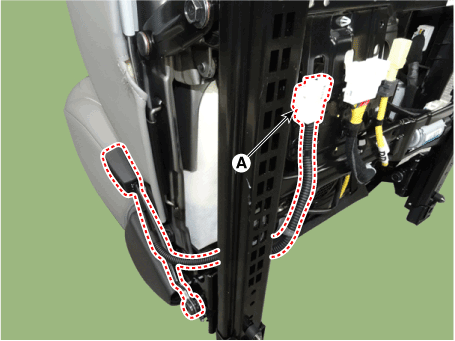

Disconnect the front seat belt buckle connector wiring (A).
|
| 3. |

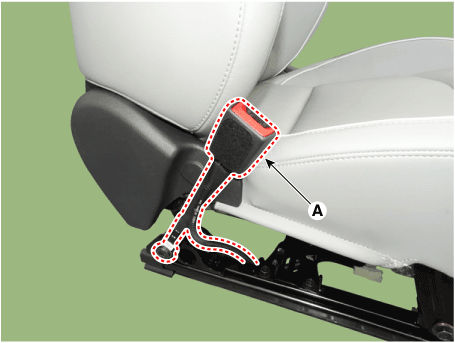

After loosening the mounting bolt, then remove the front seat belt buckle
(A).
|
| 4. |
To install, reverse removal procedure.
|
