Hyundai i-30: Airbag Module / Side Airbag (SAB) Module

Hyundai i30 (PD) 2018-2023 Service Manual / Restraint / Airbag Module / Side Airbag (SAB) Module

Components and components location

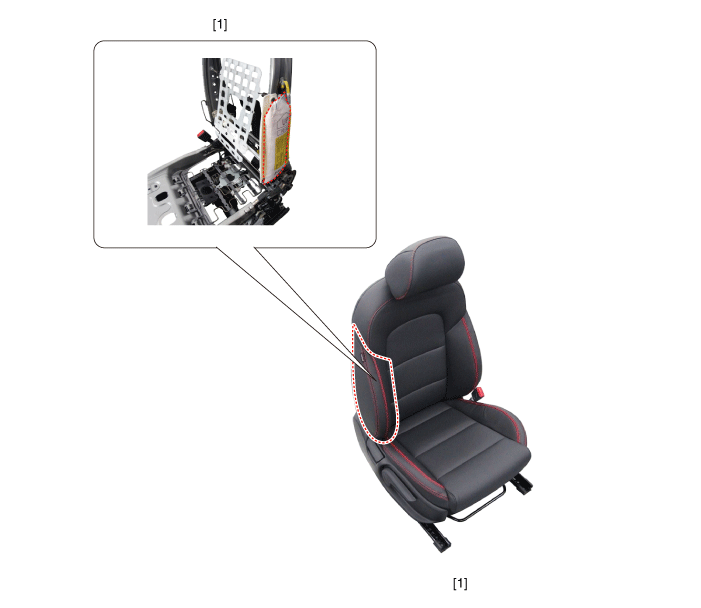

Components

1. Side Air Bag (SAB)


Description and operation
Description
The Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when side crash occurs. The SRSCM determines deployment of side airbag by using Side Impact Sensor (SIS) signal.

Never attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.
Repair procedures
Removal
1.
Disconnect the negative battery terminal.

After disconnecting the cables, wait at least 3 minutes.
2.
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
3.
Remove the front seat back cover.
(Refer to Body - "Front Seat Back Cover")
4.

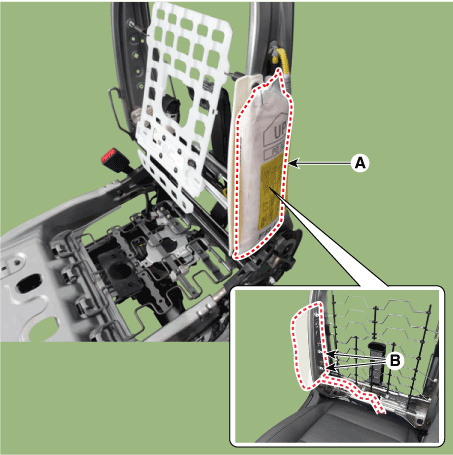

Loosen the side airbag mounting nuts (B) and remove the side airbag (A).

Installation

Be sure to install the harness wires so they will not pinch or interfere with other parts.

Do not open the lid of the side airbag cover.
Make sure that the airbag assembly cover is installed properly. Improper installation may prevent the proper deployment.
1.
Remove the ignition key from the vehicle.
2.
Disconnect the battery negative cable and wait for at least three minutes.
3.
Place a side airbag on the side airbag (A) frame and tighten the side airbag mounting nuts.

4.
Install the front seat back cover.
(Refer to Body - "Front Seat Back Cover")
5.
Install the front seat assembly.
(Refer to Body - "Front Seat Assembly")
6.
Recline and slide the front seat forward fully, make sure the harness wires are not pinched of interfere with other parts.
7.
Reconnect the battery negative cable.
8.
After installing the side airbag (SAB), confirm proper system operation :
Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
