Components and components location

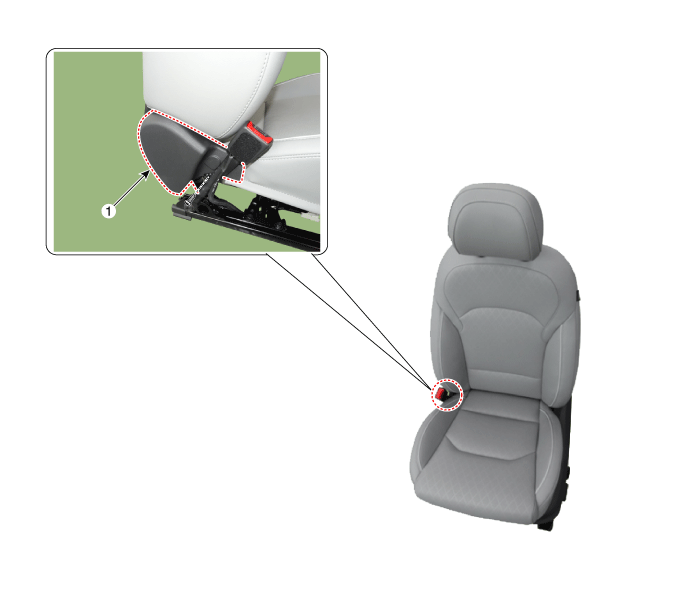

Component Location

1. Front seat shield inner cover


Repair procedures
Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

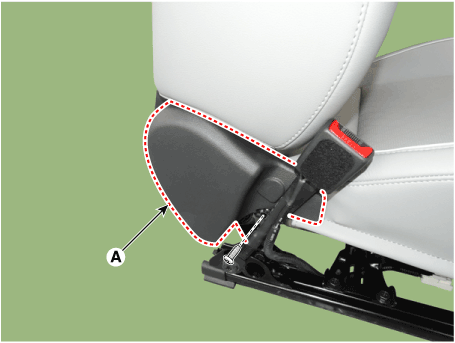

Loosen the screws and remove the front seat shield inner cover (A).

3.
To install, reverse removal procedure.

Replace any damaged clips (or pin-type retainers).
