Hyundai i-30: Mirror / Inside Rear View Mirror

Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Mirror / Inside Rear View Mirror

Components and components location

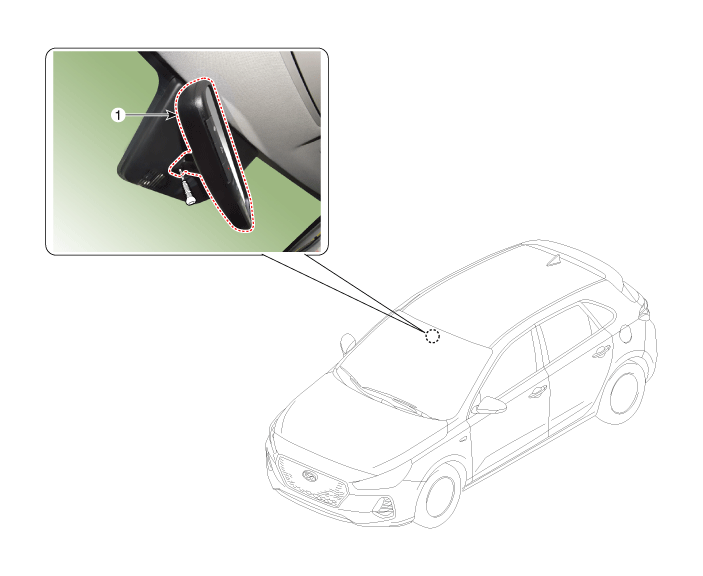

Component Location

1. Inside rear view mirror


Repair procedures
Replacement

•
Put on gloves to prevent hand injuries.
1.

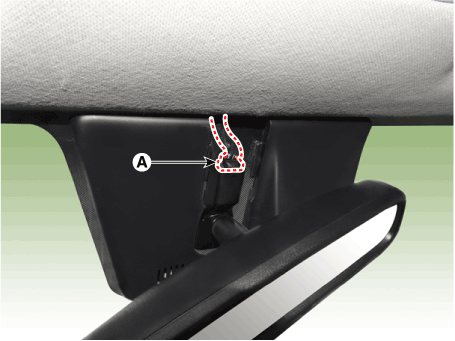

Remove the ECM mirror cover (A).
2.

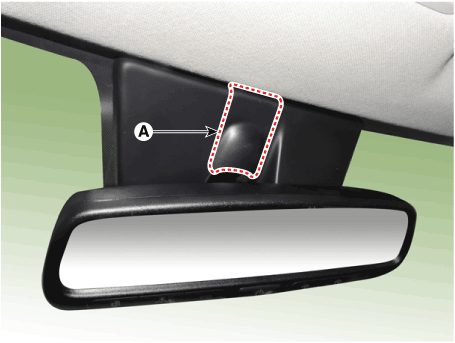

Disconnect the ECM mirror connector (A).
3.

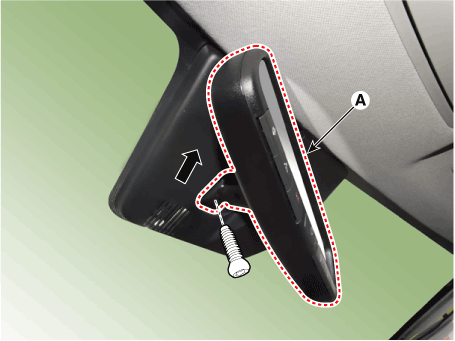

Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
4.
To install, reverse removal procedure.

•
Make sure the connector is connected properly.
•
Be careful not to damage the windshield glass.
