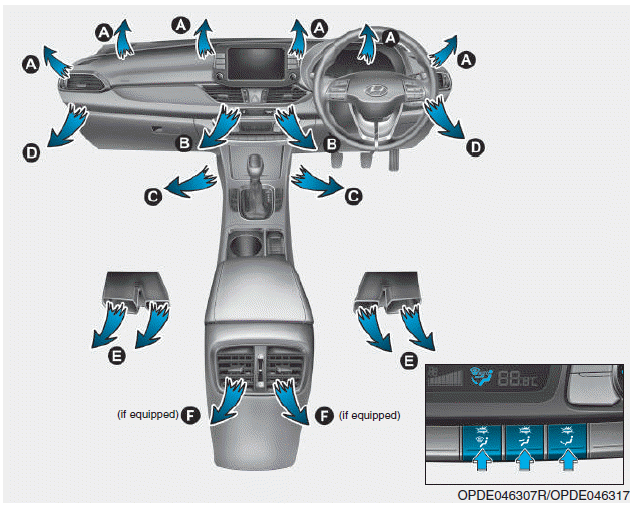

The mode selection button controls the direction of the air flow through the ventilation system.

Defrost-Level (A, D)

Hyundai i30. Mode selection

Most of the air flow is directed to the windscreen.

Face-Level (B, D, F)

Hyundai i30. Mode selection

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Floor-Level (A, C, D, E, F)

Hyundai i30. Mode selection

Most of the air flow is directed to the floor.

Also you may select 2~3 modes at the same time.

- face (Hyundai i30. Mode selection) + floor (Hyundai i30. Mode selection) mode
- face (Hyundai i30. Mode selection) + defrost (Hyundai i30. Mode selection) mode
- floor (Hyundai i30. Mode selection) + defrost (Hyundai i30. Mode selection) mode
- face (Hyundai i30. Mode selection) + floor (Hyundai i30. Mode selection) + defrost (Hyundai i30. Mode selection) mode

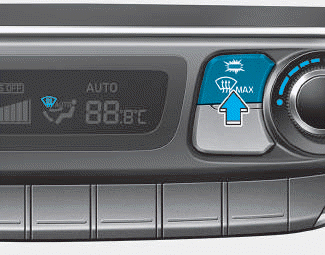

Defrost-Level (A)

Hyundai i30. Mode selection

Most of the air flow is directed to the windscreen with a small amount of air directed to the side window defrosters.

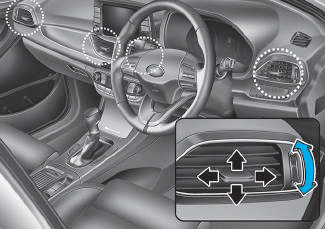

Instrument panel vents

Hyundai i30. Mode selection

■ Front

Hyundai i30. Mode selection

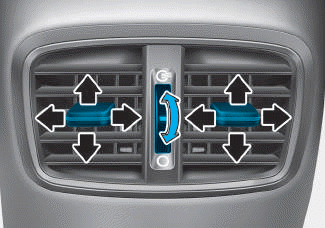

■ Rear

The outlet vents can be opened (Hyundai i30. Mode selection) or closed (Hyundai i30. Mode selection) separately using the thumbwheel.

Also, you can adjust the direction of air delivery from these vents using the vent control lever as shown.

    Manual heating and air conditioning

    The heating and cooling system can be controlled manually by pushing buttons other than the AUTO button. In this case, the system works sequentially according to the order of buttons selected...

    Temperature control

    The temperature will increase by turning the knob to the right. The temperature will decrease by turning the knob to the left. Adjusting the driver and passenger side temperature equally Press the “SYNC” button to adjust the driver and passenger side temperature equally...
