Hyundai i-30: Panorama Sunroof / Panorama Sunroof Switch

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch

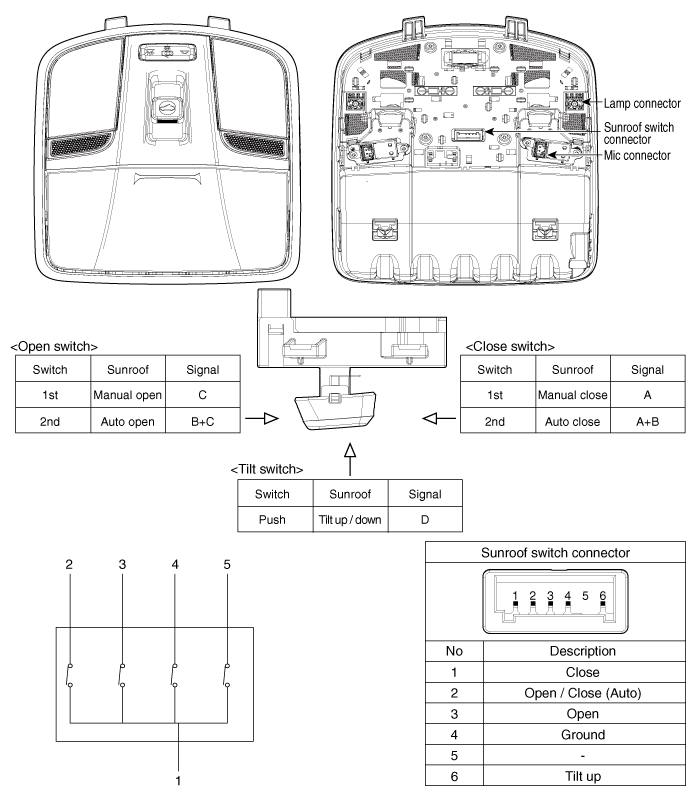

Components and components location
Components

Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.

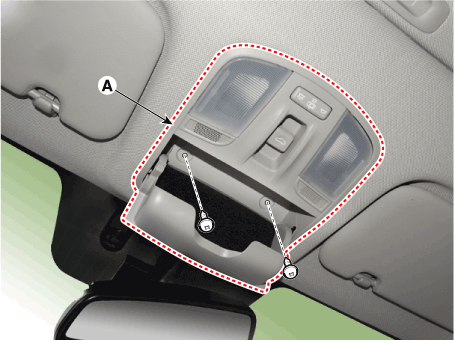

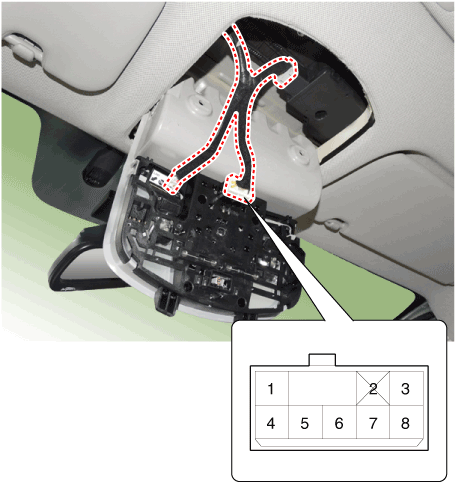

Open the sunglass case cover from the overhead console and remove the 2 screws holding the overhead console. Disconnect the switch connector and Map lamp connector, and then remove the overhead console lamp (A).

3.

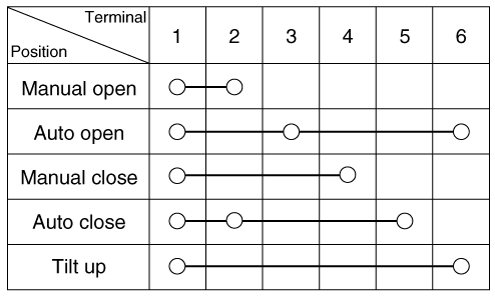

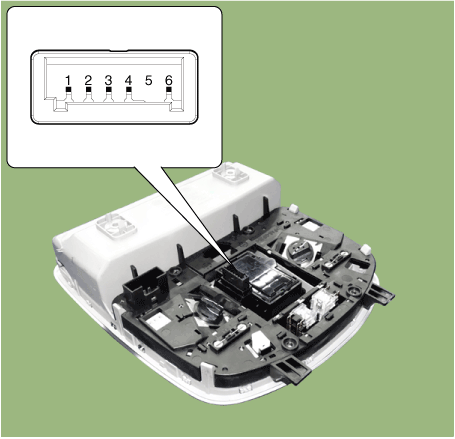

Check for continuity between the terminals. If the continuity is not shown as specified, replace the panoramaroof switch.

    Schematic diagrams

    ..

    Panorama Sunroof Motor

    Repair procedures Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the roof trim assembly...
