Hyundai i-30: Panorama Sunroof / Schematic diagrams

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Panorama Sunroof / Schematic diagrams

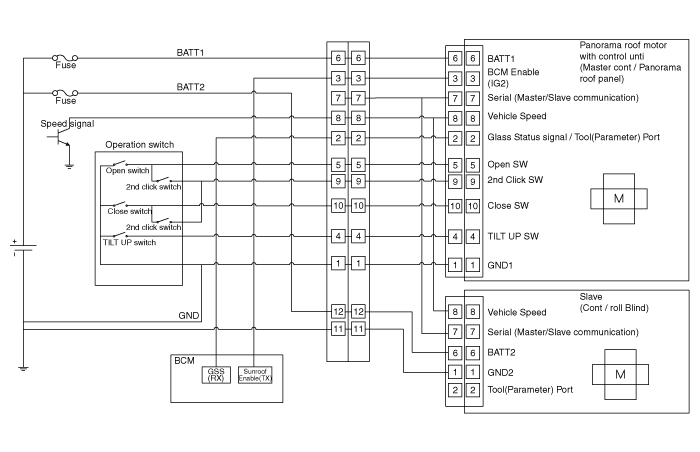

Circuit Diagram

No
Sunroof wiring connector
Panorama glass motor(Master)
Blind motor(Slave)

1
Ground 1
Ground 1
Ground2
2
Panorama glass position signal
Panorama glass position signal
-
3
BCM Enable
BCM Enable
-
4
Tilt up
Tilt up
-
5
Open
Open
-
6
Battery 1
Battery 1
Battery 2
7
LIN CAN
LIN CAN
LIN CAN
8
Vehicle speed signal
Vehicle speed signal
Vehicle speed signal
9
One touch signal
One touch signal
-
10
Close
Close

11
Ground 2

12
Battery 2
