Hyundai i-30: Power Windows / Power Window Switch

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / Power Windows / Power Window Switch

Components and components location
Components

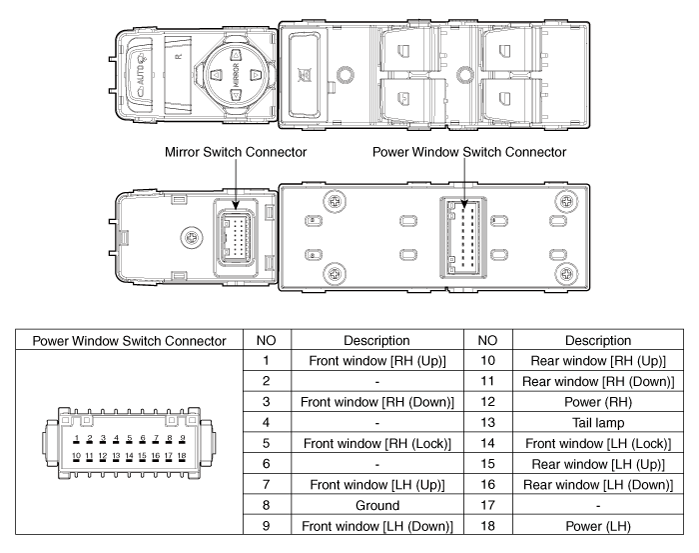

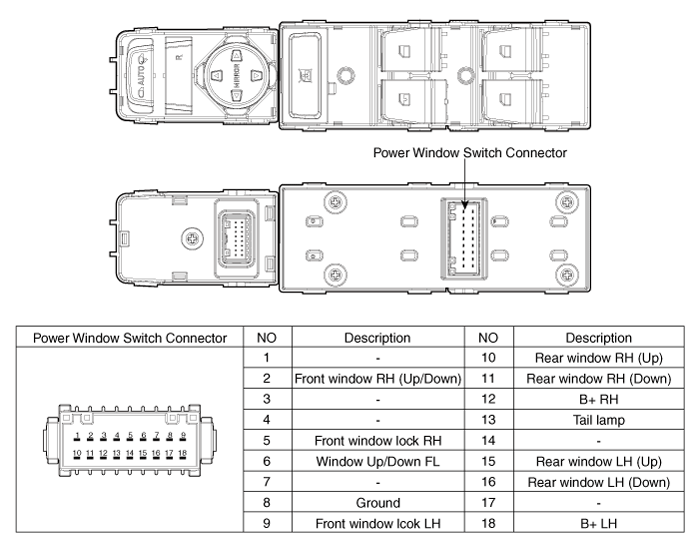

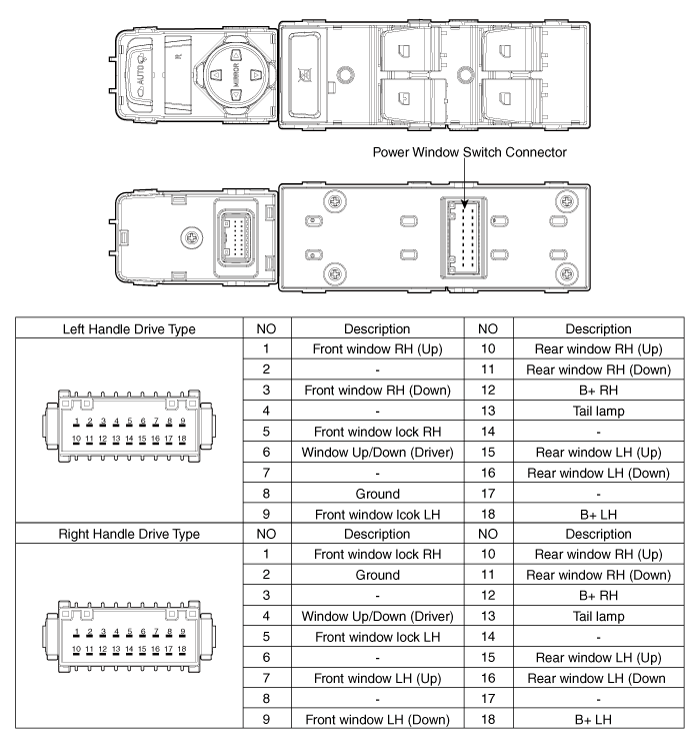

[Power window Main Switch]

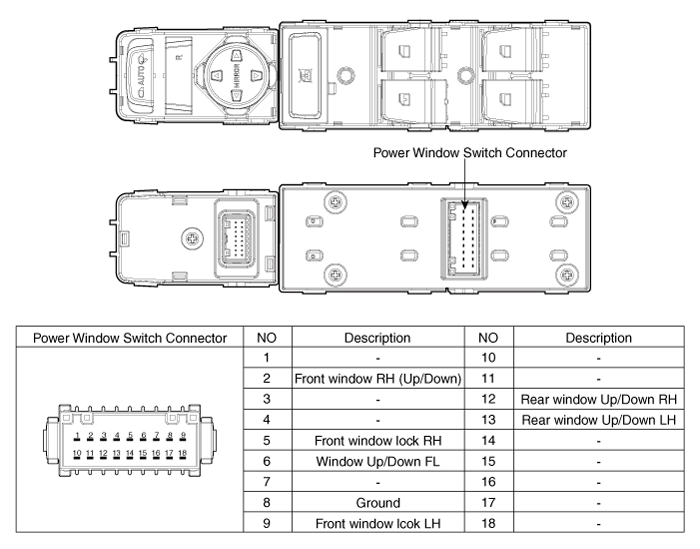

[Auto/Down Power Window Switch+None IMS]

[Drive Safety + None IMS]

[Driver/Assist Safety Power Window Switch+None IMS]

[All Door Safety Power Window Switch+None IMS]

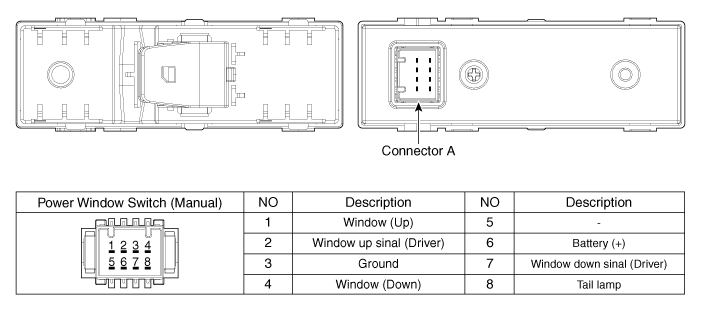

[Assist, Rear Power Window Switch (Manual)]

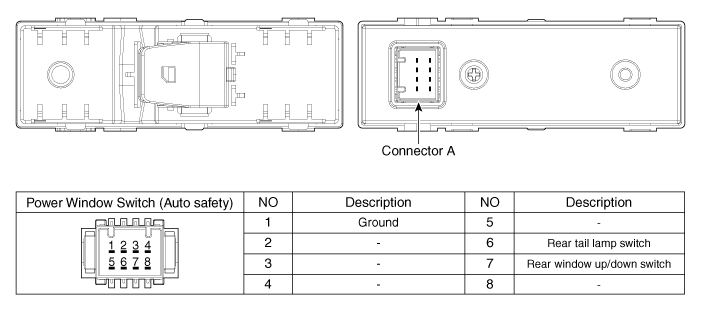

[Assist, Rear Power Window Switch (Auto Safety)]

Schematic diagrams

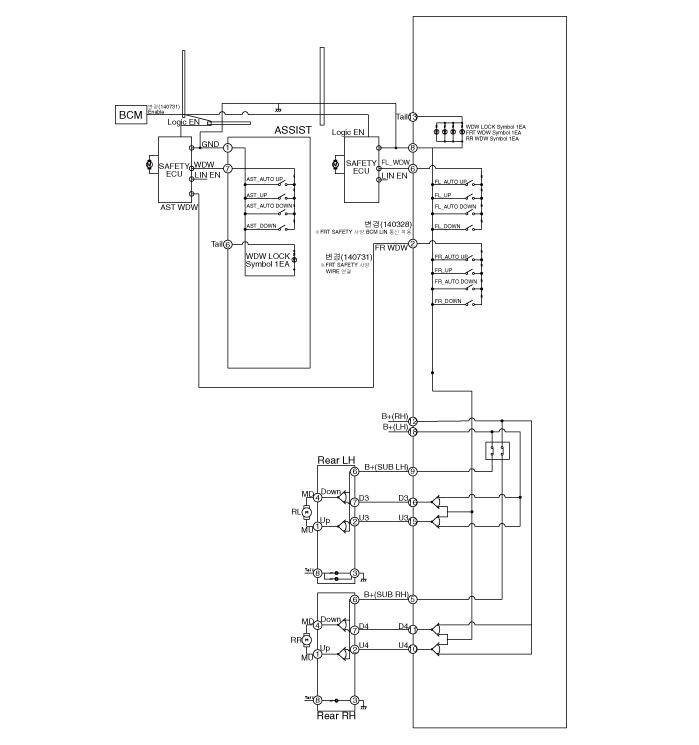

Circuit Diagram

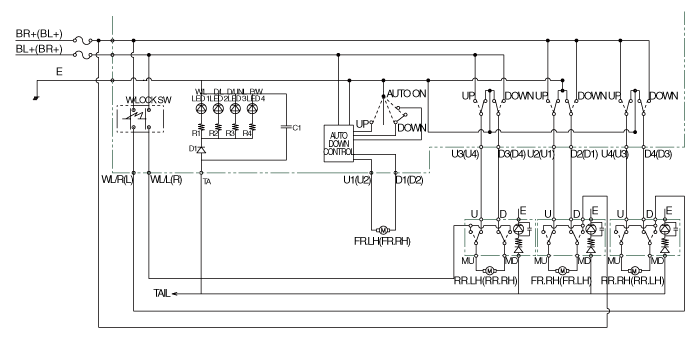

[Auto/Down Power Window Switch+None IMS]

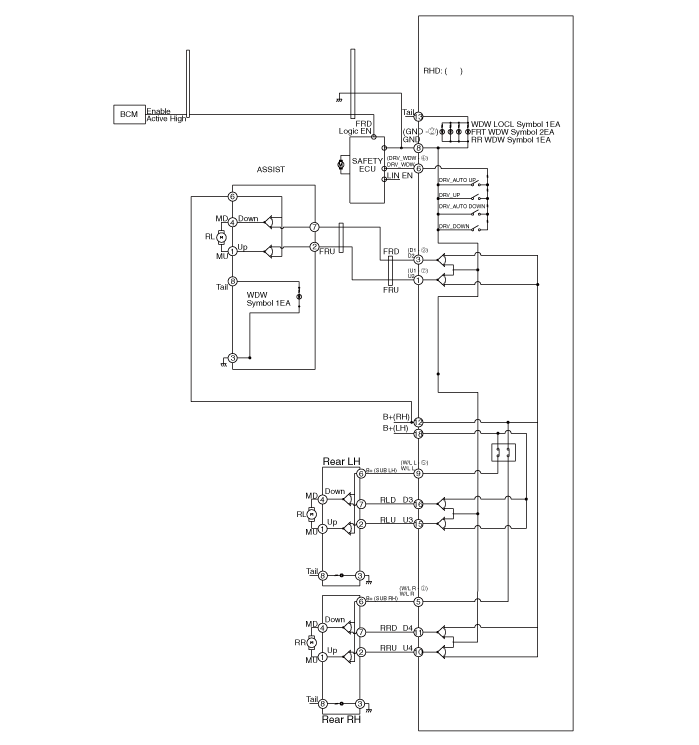

[Drive Safety + None IMS]

[Driver/Assist Safety Power Window Switch+None IMS]

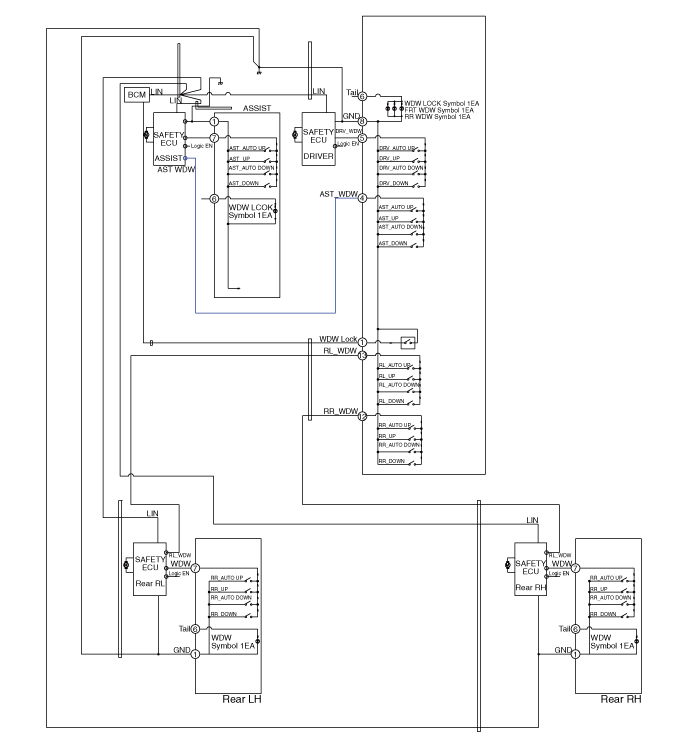

[All Door Safety Power Window Switch+None IMS]

Assist Power Windw Switch

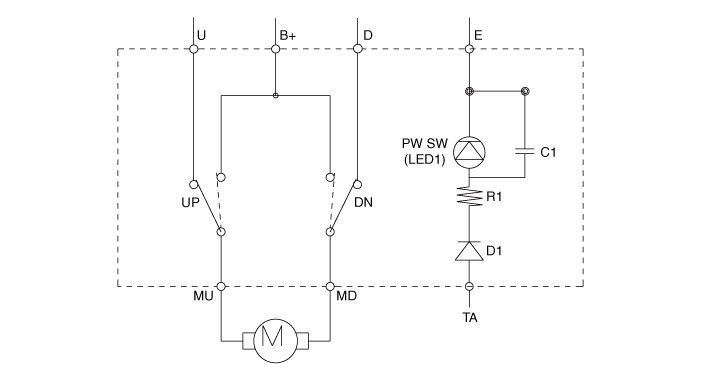

[Power window switch (Manual)]

Rear Power Windw Switch
[Power window switch (Manual)]

Repair procedures
Inspection
Driver Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the driver door trim.
(Refer to Body - "Front Door Trim")
3.

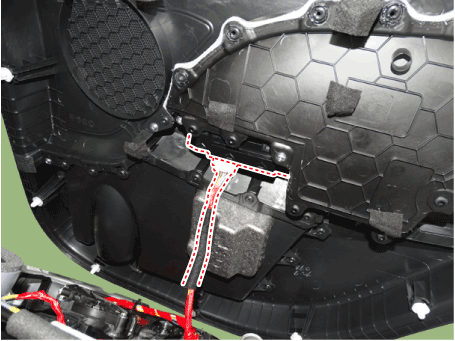

Disconnect the power mirror switch connector from the door trim.

4.

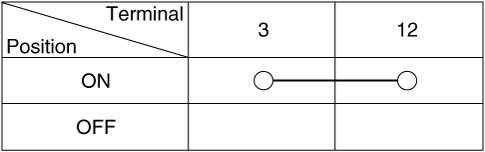

Check for continuity between the terminals in each switch position as shown below.

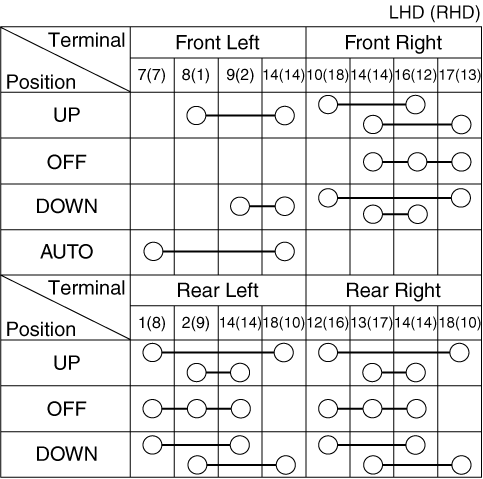

[Power Window Switch Inspection]

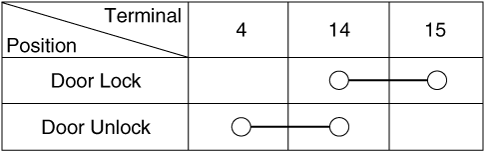

[Power Door Lock Switch Inspection]

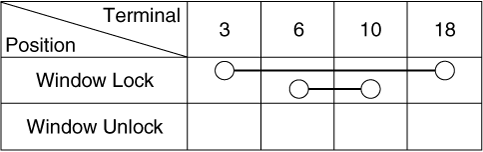

[Power Window Lock Switch Inspection]

Assist Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the assist door trim.
(Refer to Body - "Front Door Trim")
3.
Disconnect the power mirror switch connector from the door trim.

4.
Check for continuity between the terminals in each switch position as shown below.

Rear Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Disconnect the power mirror switch connector from the door trim.

4.
Check for continuity between the terminals in each switch position as shown below.

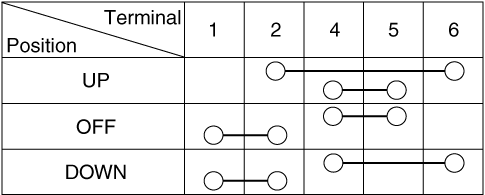

[Rear Power Window Switch Inspection]

[Rear Sear Heater Switch Inspection]

Removal
Driver / Assist Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

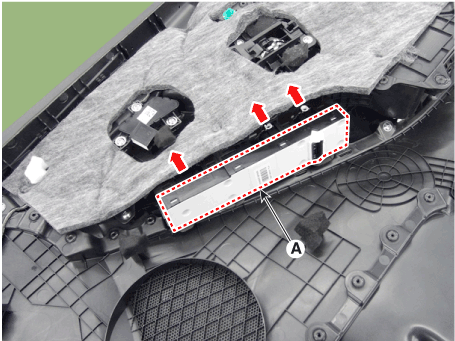

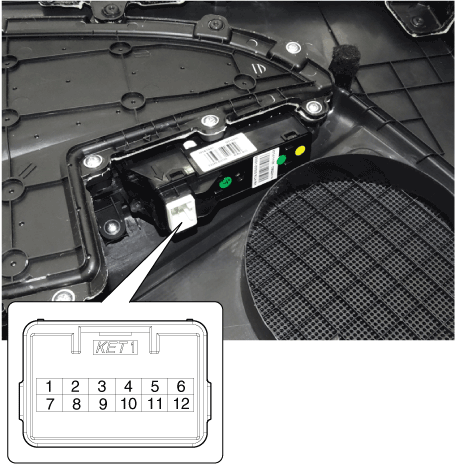

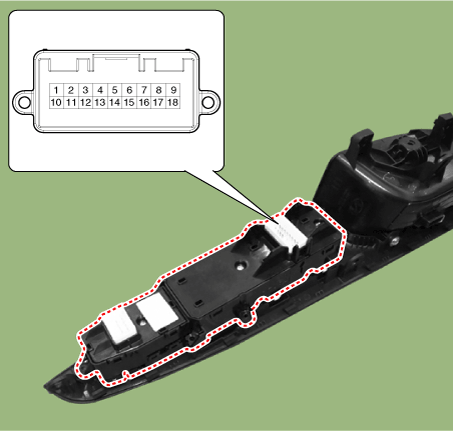

Remove the power window switch assembly (A).

Rear Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
3.
Remove the power window switch assembly (A) after loosening the mounting screws.

Installation
Driver / Assist Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connect the connector.
Rear Power Window Switch
1.
Install the power window switch assembly.
2.
Install the rear door trim after connect the connector.
