Hyundai i-30: Engine Control System / RCV Control Solenoid Valve

Hyundai i30 (PD) 2018-2024 Service Manual / Engine Control / Fuel System / Engine Control System / RCV Control Solenoid Valve

Description and operation
Description

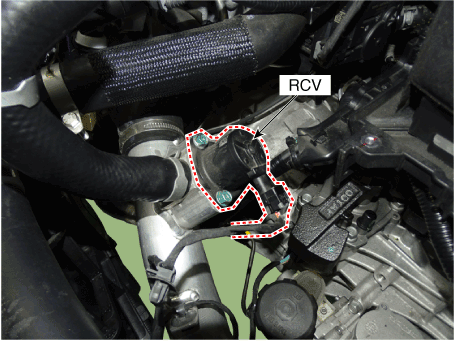

RCV (Recirculation Valve) Control Solenoid Valve is installed on the cooling pan motor top and operates the RCV actuator which controls the by-pass passage of the turbo-charger compressor.
When the throttle valve is closed during engine running [Tip-out], crash noise of the impeller will occur because of rapid increasing of the boost pressure. So, in this case, in order to prevent this phenomenon, ECM maintains the appropriate boost pressure by opening the by-pass passage.

Specifications
Specification
Item
Specification
Coil Resistance (Ω)
28.3 - 31.1 [20°C (68°F)]

Schematic diagrams

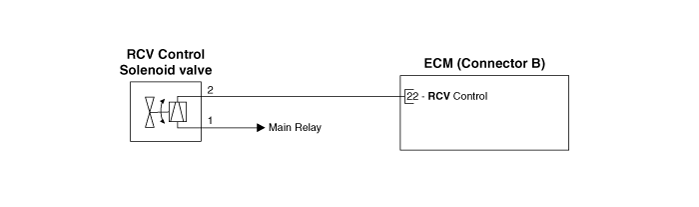

Circuit Diagram

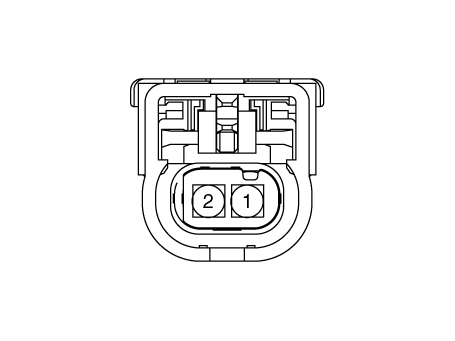

Harness Connector

Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the RCV connector.
3.
Measure resistance between the RCV terminals 1 and 2.
4.
Check that the resistance is within the specification.
Specification : Refer to "Specification"
Removal
1.
Turn the ignition switcg OFF, and then disconnecting the battery negative (-) terminal.
2.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
3.

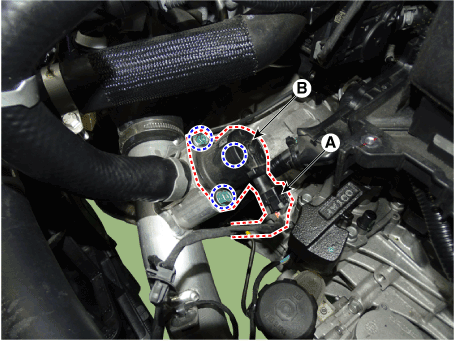

Disconnect the RCV control solenoid valve connector (A).
4.
Remove the RCV control solenoid valve (B) after loosening the mounting bolt.
Tightening Torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Installation

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
1.
Install in the reverse order of removal.
