Components and components location

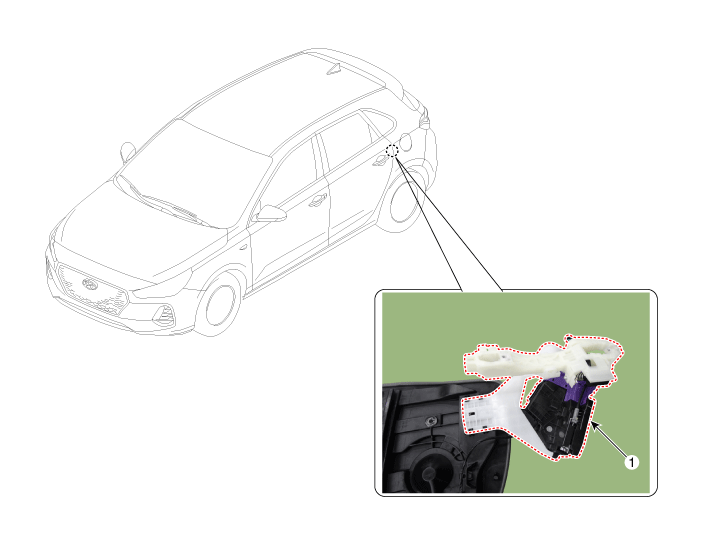

Component Location

1. Rear door latch


Repair procedures
Replacement
1.
Remove the rear door module.
(Refer to Rear Door - "Rear Door Module")
2.

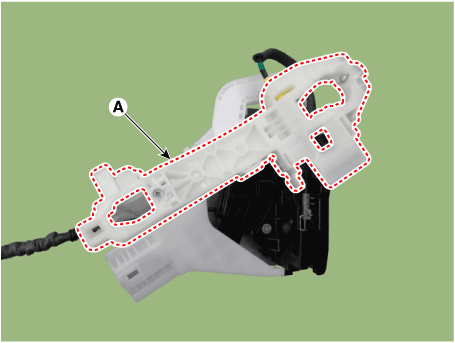

Remove the rear door inside handle cage (A).

3.

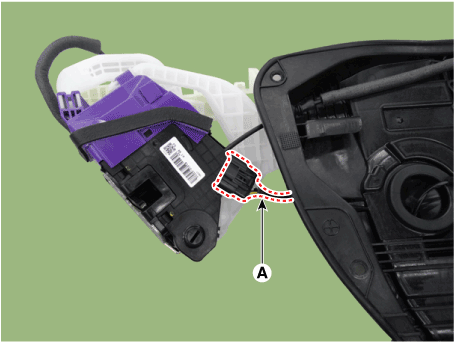

Disconnect the rear door latch connector (A).

4.

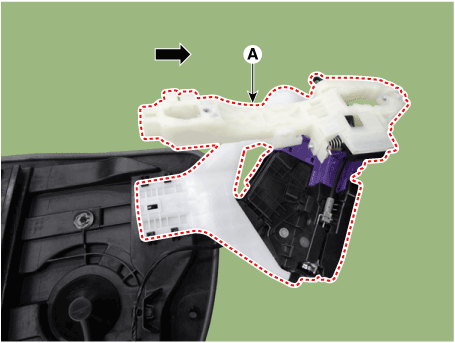

Remove the rear door latch assembly (A) by pulling it in the direction of the arrow.

5.

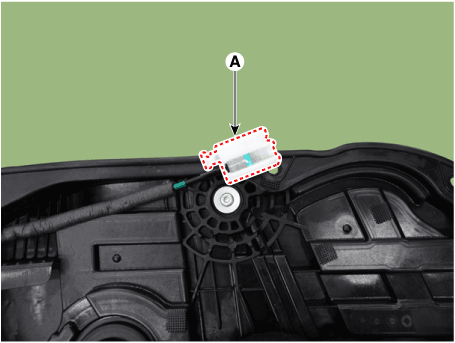

Remove the rear door outside handle base (A) by pushing in the lock pins located in the back.

6.

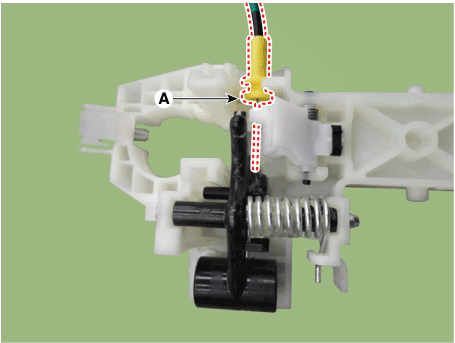

Remove the rear door outside handle cable (A).

7.
To install, reverse removal procedure.

Make sure the connector is connected properly.
Make sure the door locks / unlocks and opens / closes properly.
Replace any damaged clips (or pin-type retainers).
