Repair procedures
Diagnosis with Diagnostic tool
Diagnosis with Diagnostic tool
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
The diagnostic system (Diagnostic tool) provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
2.
If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

3.

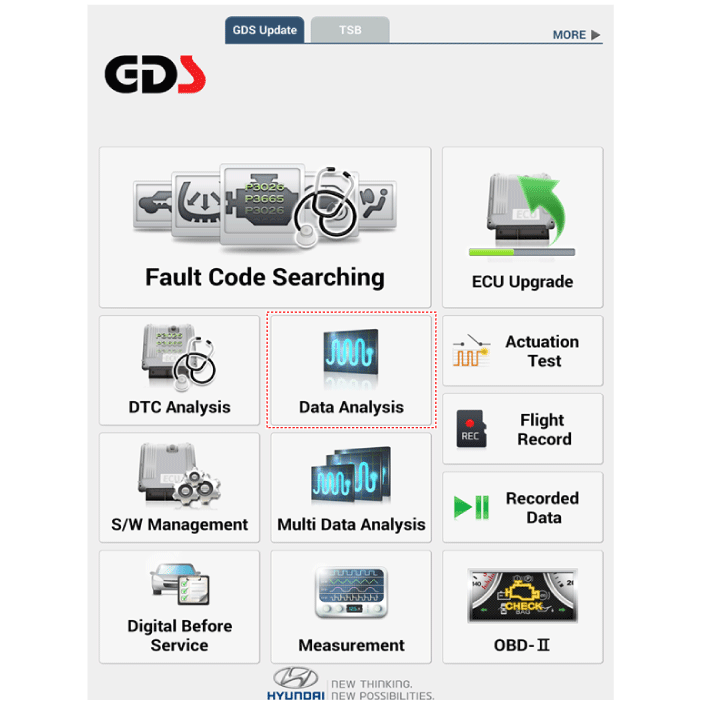

Select the 'Data Analysis' and 'Car model'.

4.
Select the 'PTM' to search the current state of the input/output data.

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the heater and A/C controll unit.
(Refer to Heating, Ventilation, Air conditioning - "Heater & A/C Control Unit (Dual)")
Installation
1.
Install the heater and A/C control unit.
2.
Connect the negative (-) battery terminal.

    Rear Glass Defogger Printed Heater

    Repair procedures Inspection    • Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line...
