Components and components location

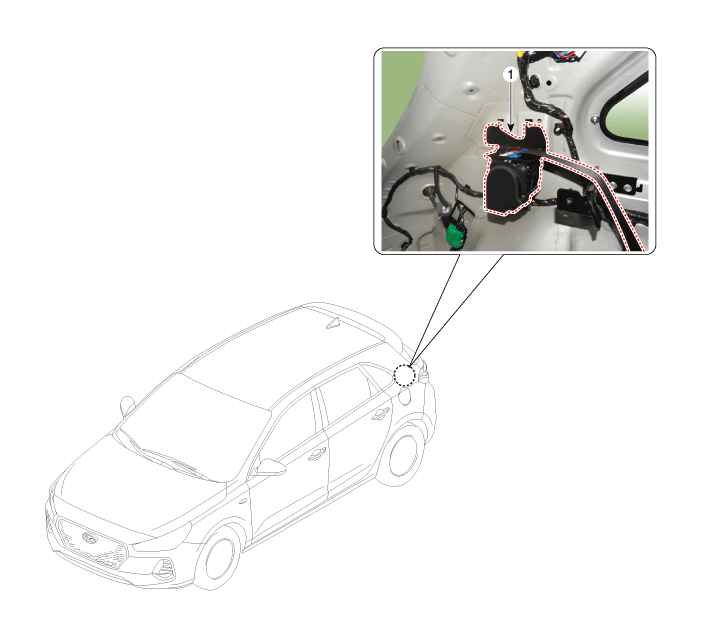

Component Location

1. Rear seat belt retractor

Repair procedures
Replacement

•
When installing the belt, make sure not to damage the retractor.
1.
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
2.
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
3.

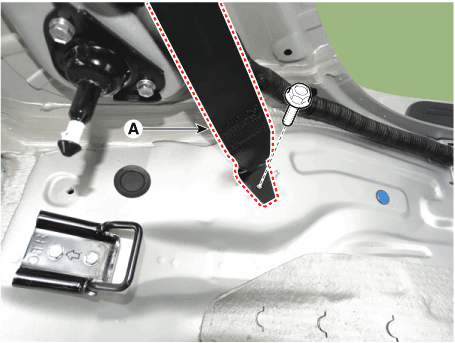

After loosening the mounting bolt, then remove the seat belt lower anchor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

4.

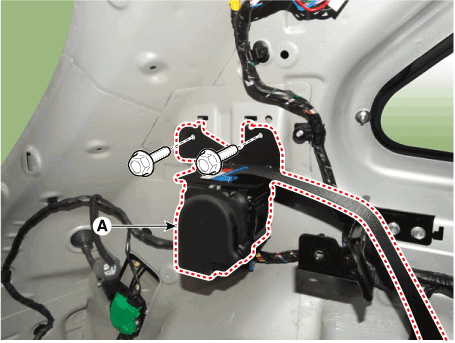

After loosening the mounting bolt, then remove the second row seat belt retractor (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

5.
To install, reverse removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).
