Removal
1.
Remove the manual transaxle assembly. [In case by MT apply]
(Refer to Manual Transaxle System - "Manual Transaxle")
2.
Remove the intelligent manual transaxle assembly. [In case by IMT apply]
(Refer to Intelligent Manual Transaxle (IMT) System - "Intelligent Manual Transaxle (IMT) System")
3.
Remove the clutch cover bolts. Be careful not to be bent or twist bolts. Loosen bolts. Loosen bolts in diagonal directions.
4.
Loosen the clutch cover mounting bolts and then removing the clutch cover.

Be careful not to be bent or twist bolts.
Loosen bolts in diagonal directions.
[Gasoline 1.0 T-GDI, 1.5 MPI, 1.5 T-GDI]

[Diesel 1.6 TCI]

Inspection
1.
Inspect diaphragm spring wear which is in contact with a concentic slave cylinder bearing.
2.
Check the clutch cover and disc surface for wear or cracks.
3.
Check the clutch disc lining for slipping or oil marks.
4.

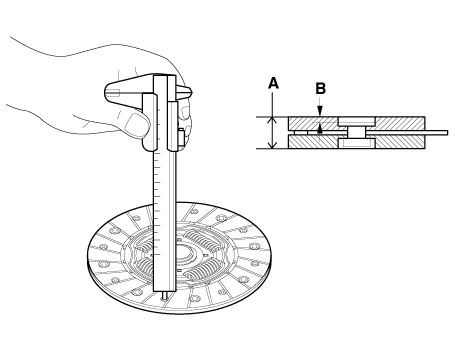

Measure the depth from a clutch lining surface to a rivet. If the measured value is less than the specification below, replace it.

Engine
Item
Specification
Gasoline 1.0 T-GDI
Clutch disc thickness (A) [When free]
8.1 ± 0.3 mm (0.3189 ± 0.0118 in.)
Clutch disc rivet depth (B)
Min 0.9 mm (0.0354 in.)
Gasoline 1.5 MPI
Clutch disc thickness (A) [When free]
8.3 ± 0.3 mm (0.3267±0.011 in.)
Clutch disc rivet depth (B)
1.1 - 1.6 mm (0.0433 - 0.0630 in.)
Gasoline 1.5 T-GDI
Clutch disc thickness (A) [When free]
8.65 mm (+0.25/-0.3mm) (0.3406 (+0.0098/-0.0118 in.)
Clutch disc rivet depth (B)
Min 1.1 mm (0.0433 in.)
Diesel 1.6 TCI
Clutch disc thickness (A) [When free]
7.2 ± 0.3mm (0.2834 ± 0.011 in)
Clutch disc rivet depth (B)
Min 1.0 mm (0.0394 in.)
ALL
Clutch disc rivet depth (Service standard)
0.3 mm (0.0118 in.)

Installation
1.

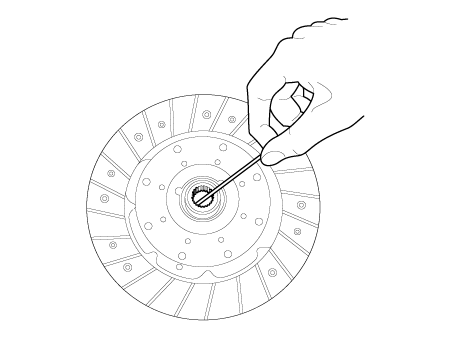

Apply grease on a disc spline part and transaxle input shaft spline part as required.
Specified grease : CASMOLY L9508
Amount : 0.1 - 0.3g

Possible problems when not following
When not applying: Excessive wear of splines and bad clutch operation can occur.
When excessively applying: Grease can be scattered bycentrifugal force which can conteminate the clutch disc. This can cause a loss of friction force causing a slip.

2.

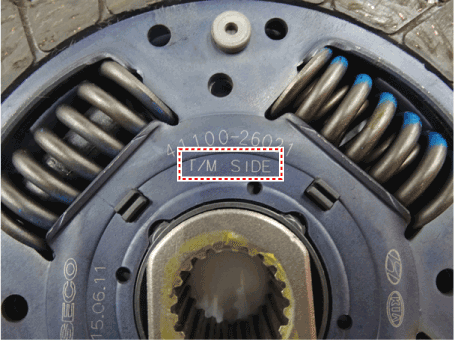

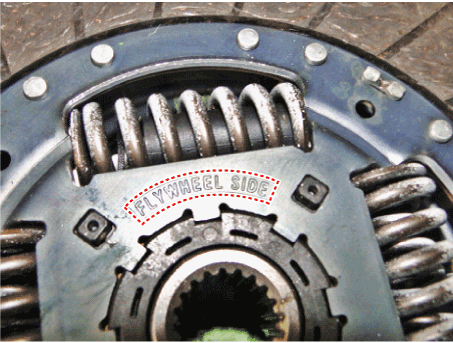

When it is assembled, marked face "TM SIDE" of clutch disc should be toward clutch cover or marked face "Fly WHEEL SIDE" of clutch disc should be toward flywheel.

Possible problems when the disc is installed in the opposite direction.
There can be an interference between the concentric slave cylinder on the transaxle side and a engine flywheel surface.
Transaxle shift error or a strange sound can occur due to clutch separation.
The concentric slave cylinder can break. If it does, the concentric slave cylinder should be replaced new one.

3.

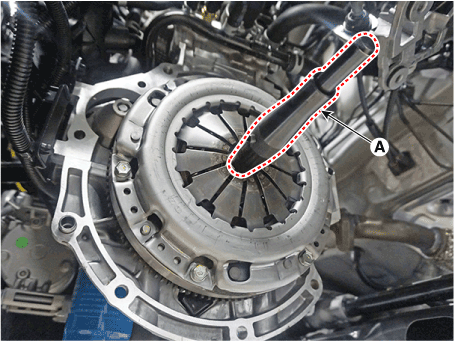

Install the clutch disc and the cover with SST(A : 09411-11000).

4.
Install the clutch cover bolts.
Tightening torque :
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft) [Diesel 1.6]
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft) [Gasoline 1.0 T-GDI, 1.5 MPI]
24.5 - 34.3 N.m (2.5 - 3.6kgf.m, 18.1 - 26.0 lb-ft) [Gasoline 1.5 T-GDI]

Install the all the components with the specified torques. If not, the clutch torque transaxle may have concerns or the mounting bolt can loosen.
When installing the clutch cover assembly, check the below fastening order for each number of bolts and tighten the bolts loosely. Then, fasten the bolts to their proper tightening torque. This can prevent twisting and vibration of the cover, and the lifting of the pressure plate.

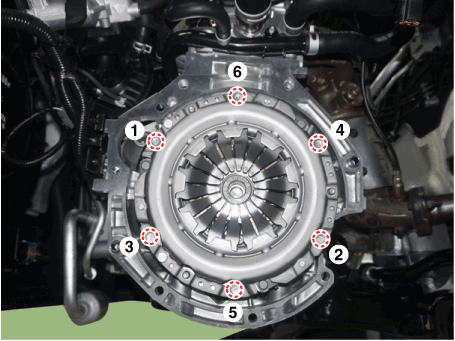

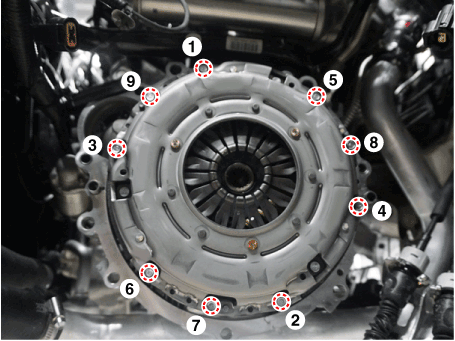

ㅡ Fastening order for each number of bolts for installing the clutch cover assembly
[Gasoline 1.0 T-GDI, 1.5 MPI, 1.5 T-GDI]

[Diesel 1.6 TCI]

5.
Remove the clutch disc guide SST (No.: 09411-1P000).

6.
Install the transaxle assembly. [In case by MT apply]
(Refer to Manual Transaxle System - "Manual Transaxle")
7.
Install the intelligent manual transaxle assembly. [In case by IMT apply]
(Refer to Intelligent Manual Transaxle (IMT) System - "Intelligent Manual Transaxle (IMT) System")
