Replacement

When removing the fender, wrap protective tape around a screwdriver or remover not to damage components
Put on gloves to prevent hand injuries

When removing the clips, use a clip remover.
1.
Remove the front bumper.
(Refer to Front Bumper - "Front Bumper Assembly")
2.
Remove the head lamps.
(Refer to Body Electrical System - "Head Lamps")
3.
Remove the front wheel guard.
(Refer to Body Side Molding - "Front Wheel Guard")
4.

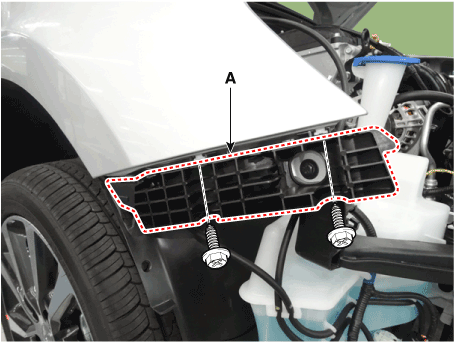

Remove the front bumper side mounthing bracket (A) after loosening the bolts.

5.

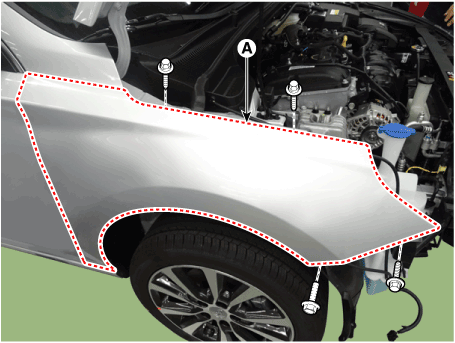

After loosening the mounting bolts remove the fender assembly (A).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

6.
To install, reverse removal procedure.

Replace any damaged clips (or pin-type retainers).
