Hyundai i-30: Tail Gate / Repair procedures
Hyundai i30 (PD) 2018-2025 Service Manual / Body (Interior and Exterior) / Tail Gate / Repair procedures
| Adjustment |
| 1. |

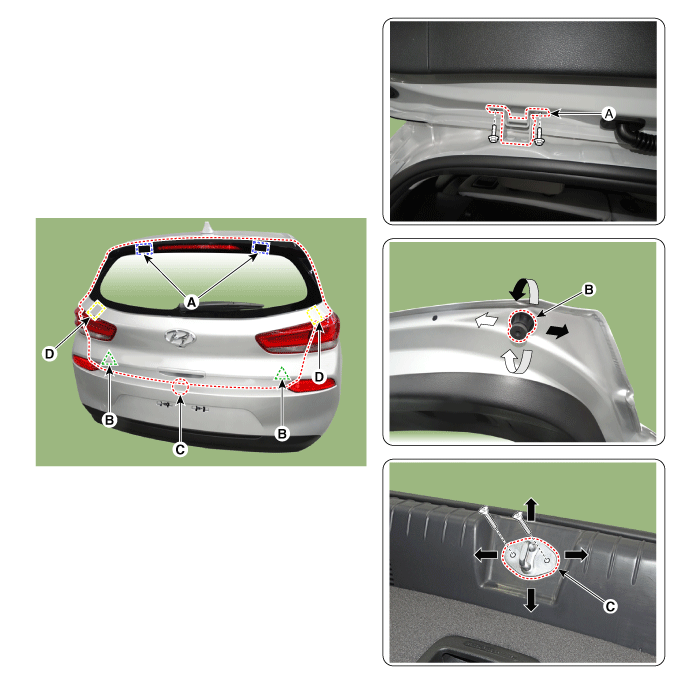

Place the car on a flat surface and check whether the body and trunk
lid are well-aligned.
|
| 2. |
After loosening the tail gate hinge (A) mounting bolt, adjust the tail
gate by moving it up and down or from side to side.
|
| 3. |
Adjust the gap between the tail gate and body by turning the tail gate
overslam bumpers (B).
|
| 4. |
After loosening the tail gate striker (C) mounting bolts, adjust the
striker by moving it back and forth or from side to side and then tighten
the mounting bolts.
|
| 5. |
Make sure the tail gate opens or closes properly.
|
| 6. |
Make sure the guide bumper (D) overlap each other is good.
|
Tail Gate
..
Tail Gate Assembly
Components and components location
Component Location
1. Tail Gate
assembly
Repair procedures
Replacement
•
Wear gloves to protect hands from injury...
