Hyundai i-30: Seat belts / Seat belt restraint system

Hyundai i30 (PD) 2018-2022 Owner's Manual / Safety system of your vehicle / Seat belts / Seat belt restraint system

Lap/shoulder belt

Hyundai i30. Seat belt restraint system

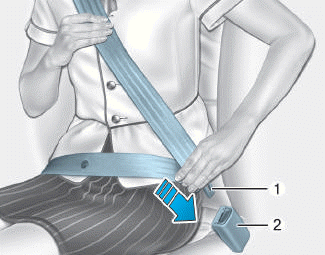

To fasten your seat belt:

Pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.

Hyundai i30. Seat belt restraint system

You should place the lap belt (1) portion across your hips and the shoulder belt (2) portion across your chest.

The seat belt automatically adjusts to the proper length after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and move with you. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.

NOTICE

If you are not able to smoothly pull enough of the seat belt out from the retractor, firmly pull the seat belt out and release it. After release, you will be able to pull the belt out smoothly.

Hyundai i30. Seat belt restraint system

WARNING

Improperly positioned seat belts may increase the risk of serious injury in an accident.Take the following precautions when adjusting the seat belt:

  • Position the lap portion of the seat belt as low as possible across your hips, not on your waist, so that it fits snugly. This allows your strong pelvic bones to absorb the force of the crash, reducing the chance of internal injuries.
  • Position one arm under the shoulder belt and the other over the belt, as shown in the illustration.
  • Always position the shoulder belt anchor into the locked position at the appropriate height.
  • Never position the shoulder belt across your neck or face.

Height adjustment

You can adjust the height of the shoulder belt anchor to one of the four different positions for maximum comfort and safety.

The shoulder portion should be adjusted so it lies across your chest and midway over your shoulder nearest the door, not over your neck.

Hyundai i30. Seat belt restraint system

■ Front seat

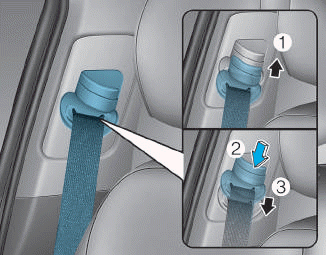

To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.

To raise the height adjuster, pull it up (1). To lower it, push it down (3) whilst pressing the height adjuster button (2).

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

Hyundai i30. Seat belt restraint system

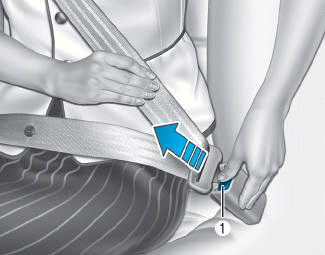

To release your seat belt:

Press the release button (1) in the locking buckle.

When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.

Seat belt warning light

Seat belt warning Driver’s seat belt warning ■ Instrument cluster As a reminder to the driver, the seat belt warning light will illuminate for approximately 6 seconds each time you turn the ignition switch ON regardless of belt fastening...

Rear centre seatbelt (3-point rear centre seat belt)

1. Insert the tongue plate (A) into the buckle (A’) until an audible “click" is heard, indicating the latch is locked. Make sure the belt is not twisted...
