Hyundai i-30: What to do in an emergency / Tyre pressure monitoring system (TPMS)
(Type A)
![Hyundai i30. (Type A)](images/tyre_pressure_monitoring_system_tpms_type_a_-302/1/hyundai_i30__type_a__676.png)

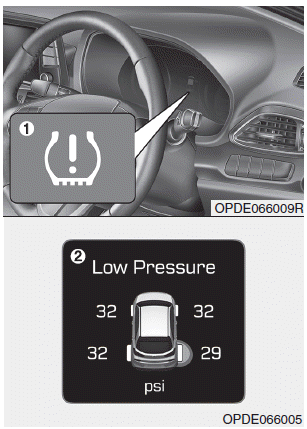

(1) Low Tyre Pressure Telltale/
TPMS Malfunction Indicator
(2) Low tyre pressure position telltale
and tyre pressure telltale
(Shown on the LCD display)
If your temperature gauge indicates
overheating, you experience a loss
of power, or hear loud pinging or
knocking, the engine may be overheating...
You can check the tyre pressure in
the Assist mode on the cluster.
Refer to the "LCD Display
Modes" in chapter 3.
Tyre pressure is displayed after a
few minutes of driving after initial
engine start up...
