Hyundai i-30: Specifications & Consumer information / Tyres and wheels

Hyundai i30 (PD) 2018-2024 Owner's Manual / Specifications & Consumer information / Tyres and wheels

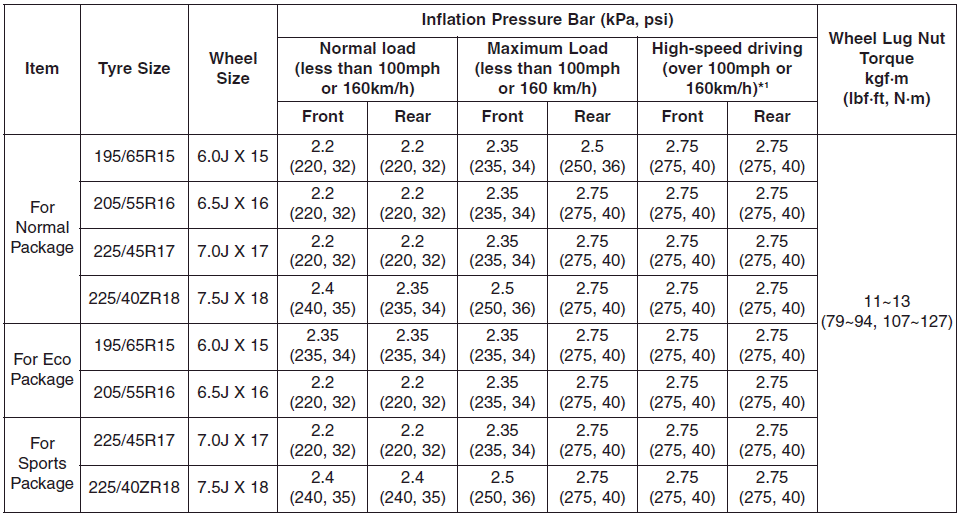

Full size tyre

Hyundai i30. Tyres and wheels

*1 : In order to drive at high speed(over 100mph or 160km/h) where the speed is lega, adjust tyre pressure as shown in above table.

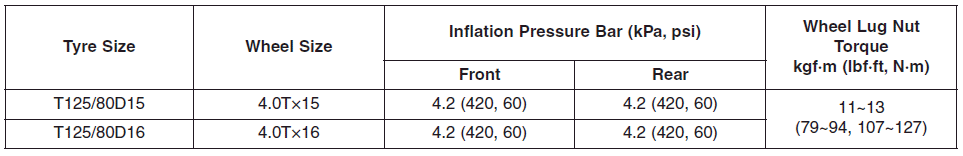

Compact spare tyre

Hyundai i30. Tyres and wheels

NOTICE

  • It is permissible to add 3 psi (20 kPa) to the standard tyre pressure specification if colder temperatures are expected soon. Tyres typically lose 1 psi (7 kPa) for every 7°C (12°F) temperature drop. If extreme temperature variations are expected, recheck your tyre pressure as necessary to keep them properly inflated.
  • An air pressure generally decreases, as you drive up to a high-altitude area above sea level.Thus, if you plan to drive a high-altitude area, check the tyre pressures in advance. If necessary, inflate them to a proper level (Air inflation per altitude: +2.4 psi/1 mile (+10 kPa/1 km)).
  • Must do not exceed maximum inflation pressure shown on equipped tyre sidewall.

CAUTION

When replacing tyres, use the same size originally supplied with the vehicle. Using tyres of a different size can damage the related parts or make it work irregularly.

    Dimensions, Engine, Bulb wattage

    D..

    Load and speed capacity tyres, Air conditioning system, Vehicle weight and luggage volume

    Load and speed capacity tyres *1 LI : LOAD INDEX *2 SS : SPEED SYMBOL Air conditioning system Contact a HYUNDAI authorised repairer for more details...
