Hyundai i-30: Interior lights / Vanity mirror lamp, Puddle lamp

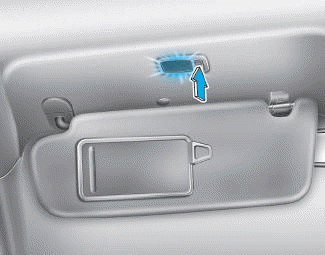

Vanity mirror lamp
Push the switch to turn the light on or off.
•
: The lamp will turn on if this
button is pressed.
•
: The lamp will turn off if this
button is pressed.
NOTICE
Always have the switch in the off position when the vanity mirror lamp is not in use. If the sunvisor is closed without the lamp off, it may discharge the battery or damage the sunvisor.

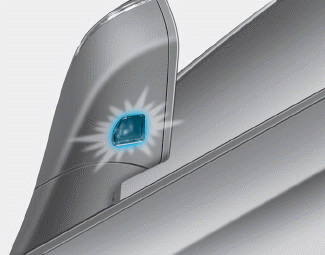

Puddle lamp
Welcome light
When all doors (and tailgate) are closed and locked, the puddle lamp will come on for 15 seconds if the door is unlocked by the smart key or outside door handle button.
Escort light
When the ignition switch is in the OFF position and the driver's door is opened, the puddle lamp will come on for 30 seconds. If the driver's door is closed within the 30 seconds, the puddle lamp will turn off after 15 seconds. If the driver's door is closed and locked, the puddle lamp will turn off immediately.
The Puddle Lamp Escort Light will turn on only the first time the driver's door is opened after the engine is turned off.
Glove box lamp, Luggage compartment lamp
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
NOTICE
To prevent unnecessary charging
system drain, close the glove box
securely after using the glove box...
