Hyundai i-30: Cooling System / Water Inlet Fitting

Hyundai i30 (PD) 2018-2024 Service Manual / Engine Mechanical System / Cooling System / Water Inlet Fitting

Repair procedures
Removal and Installation
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
2.
Drain the coolant.
(Refer to Cooling System - "Coolant")
3.

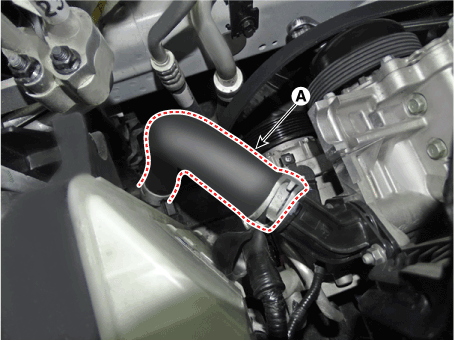

Disconnect the radiator lower hose (A).

4.

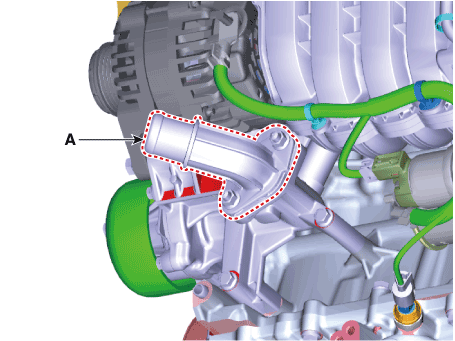

Remove the water fitting pipe (A).
Tightening torque :
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

5.
Install in the reverse order of removal.

Always use a new water fitting pipe O-ring.
6.
Fill with engine coolant.
(Refer to Cooling System - "Coolant")

The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
7.
Start engine and check for leaks.
