Hyundai i-30: Front seats / Power adjustment

Hyundai i30 (PD) 2018-2024 Owner's Manual / Safety system of your vehicle / Seats / Front seats / Power adjustment

WARNING

NEVER allow children in the 2 vehicle unattended. The power seats are operable when the engine is turned off.

NOTICE

To prevent damage to the seats:

  • Always stop adjusting the seats when the seat has been adjusted as far forward or rearward as possible.
  • Do not adjust the seats longer than necessary when the engine is turned off. This may result in unnecessary battery drain.
  • Do not operate two or more seats at the same time. This may result in an electrical malfunction.

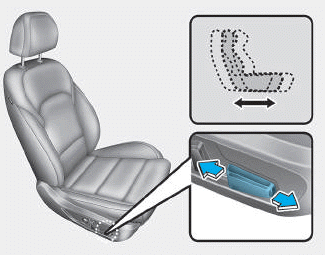

Forward and rearward adjustment

Hyundai i30. Power adjustment

To move the seat forward or rearward:

1. Push the control switch forward or rearward.

2. Release the switch once the seat reaches the desired position.

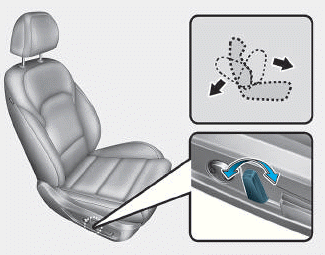

Seatback angle

Hyundai i30. Power adjustment

To recline the seatback:

1. Push the control switch forward or rearward.

2. Release the switch once the seatback reaches the desired position.

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protections of your restraint system (seat belts and air bags) is greatly reduced by reclining your seatback.

WARNING

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Driver and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger’s hips will slide under the lap belt or the passenger’s neck will strike the shoulder belt.

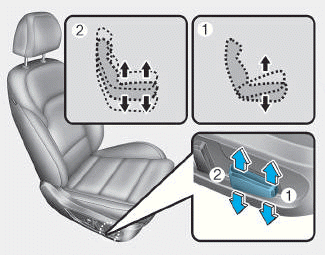

Seat cushion tilt (1, for driver’s seat)

Hyundai i30. Power adjustment

To change the angle of the front part of the cushion:

Push the front portion of the control switch up to raise or down to lower the front part of the seat cushion.

Release the switch once the seat reaches the desired position.

Seat cushion height (2, for driver’s seat)

To change the height of the seat cushion:

Push the rear portion of the control switch up to raise or down to lower the height of the seat cushion.

Release the switch once the seat reaches the desired position.

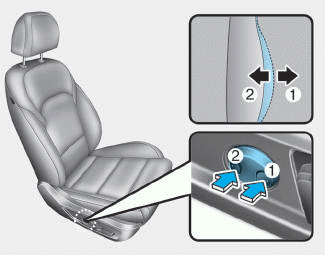

Lumbar support

Hyundai i30. Power adjustment

  • The lumbar support can be adjusted by pressing the lumbar support switch.
  • Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.
