Hyundai i30. Air bag non-inflation conditions

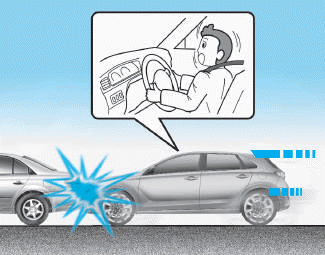

In certain low-speed collisions the air bags may not deploy. The air bags are designed not to deploy in such cases because they may not provide benefits beyond the protection of the seat belts.

Hyundai i30. Air bag non-inflation conditions

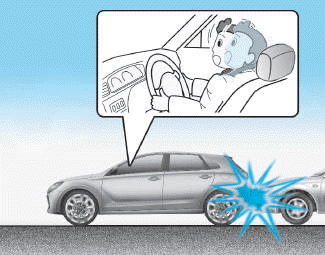

Front air bags are not designed to inflate in rear collisions, because occupants are moved backward by the force of the impact. In this case, inflated air bags would not provide any additional benefit.

Hyundai i30. Air bag non-inflation conditions

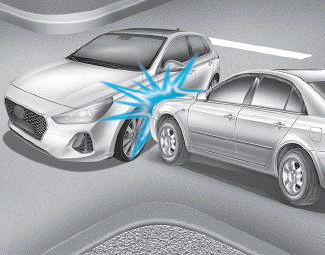

Front air bags may not inflate in side impact collisions, because occupants move in the direction of the collision, and thus in side impacts, front air bag deployment would not provide additional occupant protection.

However, side and curtain air bags may inflate depending on the severity, vehicle speed and angles of impact.

Hyundai i30. Air bag non-inflation conditions

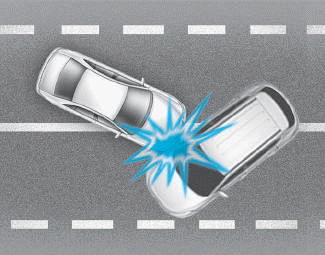

In an angled collision, the force of impact may direct the occupants in a direction where the air bags would not be able to provide any additional benefit, and thus the sensors may not deploy any air bags.

Hyundai i30. Air bag non-inflation conditions

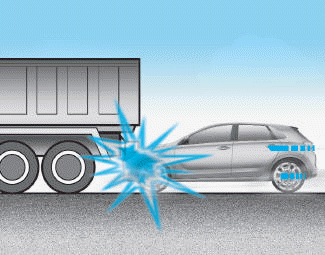

Just before impact, drivers often brake heavily. Such heavy braking lowers the front portion of the vehicle causing it to “ride” under a vehicle with a higher ground clearance. Air bags may not inflate in this "underride" situation because deceleration forces that are detected by sensors may be significantly reduced by such “underride” collisions.

Hyundai i30. Air bag non-inflation conditions

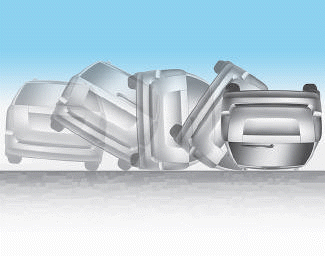

Front air bags may not inflate in rollover accidents because front air bag deployment would not provide additional occupant protection.

Information

  • Vehicles equipped with rollover sensor The side and curtain air bags may inflate in a rollover situation, when it is detected by the rollover sensor.
  • Vehicles not equipped with rollover sensor
    The side and/or curtain air bags may inflate when the vehicle is rolled over by a side impact collision, if the vehicle is equipped with side and/or curtain air bags.

Hyundai i30. Air bag non-inflation conditions

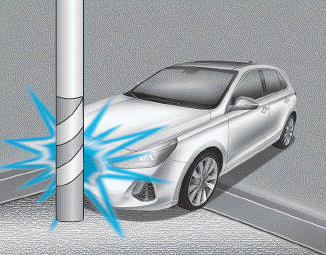

Air bags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated and the collision energy is absorbed by the vehicle structure.
