Hyundai i-30: Lighting System / License Lamps

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Lighting System / License Lamps

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.

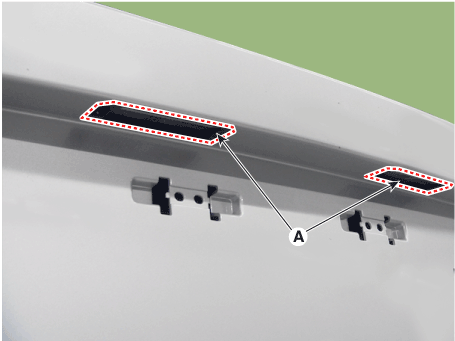

Using a screwdriver or remover, Separate the license lamp (A).

3.

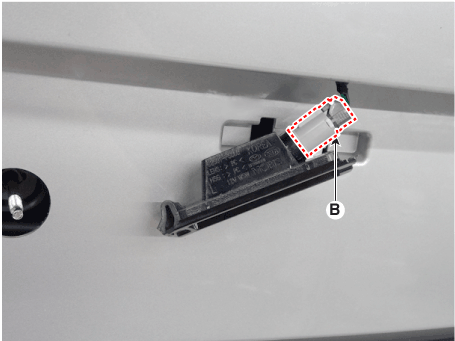

Disconnect the license lamps connector (B).

4.

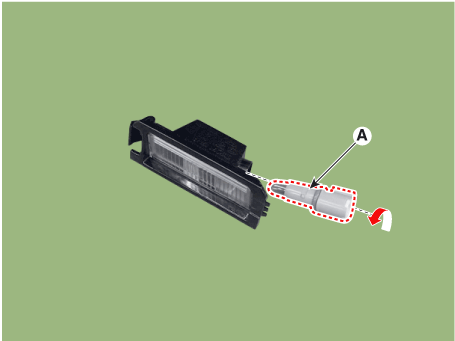

Remove the license lamp bulb (A) after turning in the counter clock-wise sirection.

Installation
1.
Install the license lamp assembly.
2.
Connect the negative (-) battery terminal.
