Components and components location

Components

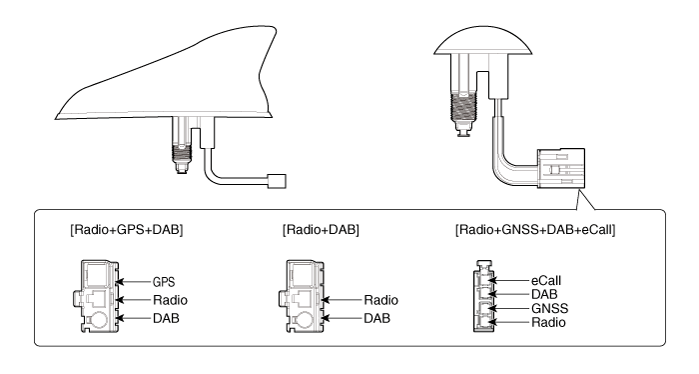

Antenna connector (Europe)

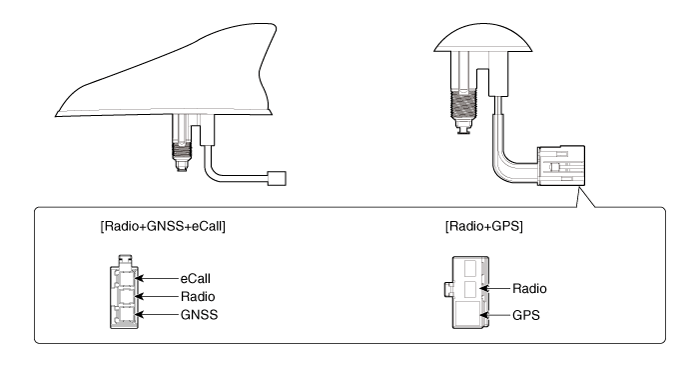

Antenna connector (Europe + Russia)

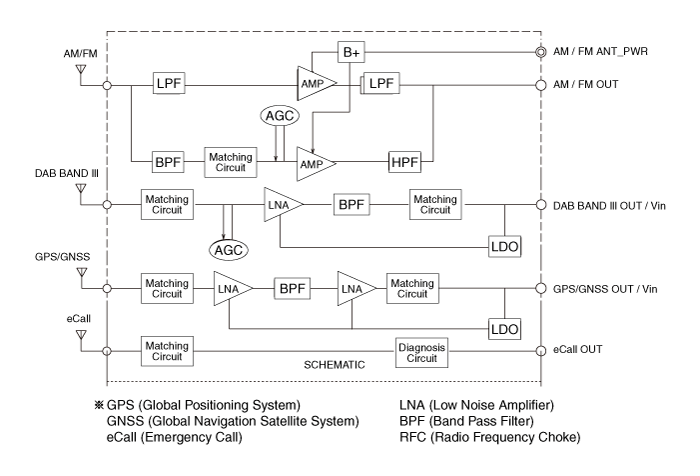

Schematic diagram

Repair procedures

Removal

Roof Antenna

1.	Disconnect the negative (-) battery terminal.

2.	Remove the roof trim assembly. (Refer to Body - "Roof Trim Assembly")

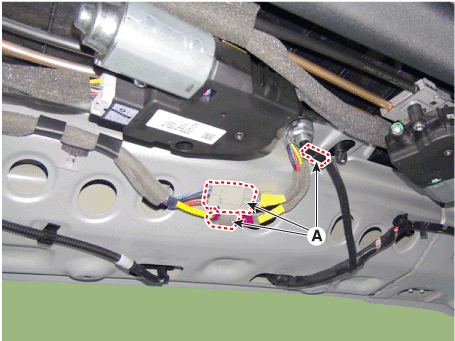

3.	Disconnect the roof antenna cable and connectors (A).

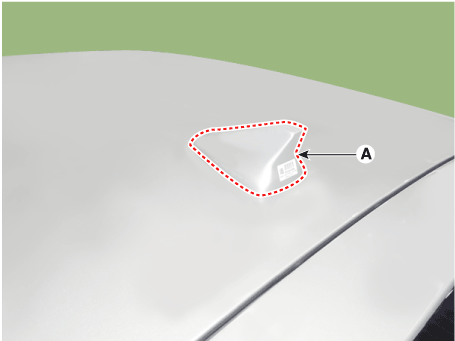

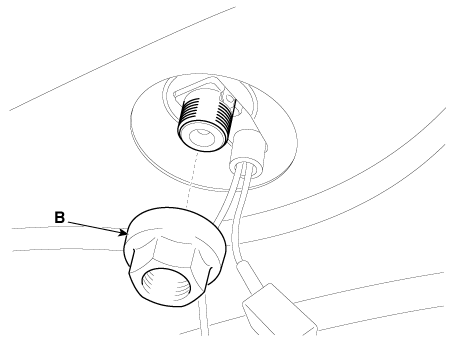

4.	Remove the roof antenna (A) after loosening a nut (B).

Installation

Roof Antenna

1.	Connect the roof antenna connectors.

Install the roof trim assembly.

•	Make sure that the cables and connectors are plugged in properly.

•	Check the AVN system for normal operation.
