Hyundai i-30: AVN System / Speaker

Hyundai i30 (PD) 2018-2024 Service Manual / Body Electrical System / AVN System / Speaker

Repair procedures
Inspection
Troubleshooting of the speakers

When handling the speakers :
Do not cause shock to the speakers by dropping or throwing them.
Be careful not to drop water and oil on the speakers.
Use caution to handle the speaker because diaphragm made of paper is easily torn by impact or external force.
Audio system tuning may cause damage to the speakers. The modified speakers are not covered by the manufacturer’s warranty.
1.
Basic inspection
Loosen the screws to rule out the interference from the body trims and surrounding parts and then remove the speaker.
After removing the speaker, check the sound quality of the speaker with the connector plugged in.
2.
Inspection for each cause
(1)
Abnormal vibration
Make sure the mounting screws are properly tightened before replacing the speaker.
Reinstall the speaker and check that the symptom is resolved.
If the symptom does not disappear, replace the speaker with a new one.
(2)
Noise
Check that the speaker connector is properly connected and reinstall the connector if necessary.
If noises occur in the radio mode, turn to the CD player mode.
If noises occur in both modes, replace the speaker with a new one.

If noises occur only in the radio mode, the poor radio reception is the cause so do not replace the speaker.
(3)
Poor working

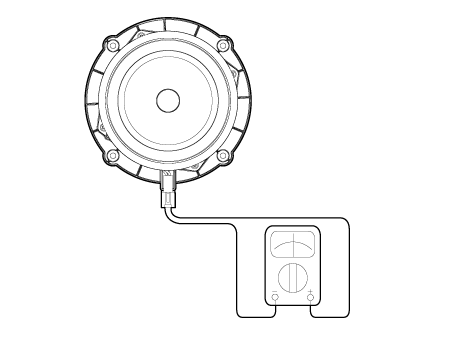

Check the plus (+) and negative (-) speaker terminals using an ohmmeter. (Check the disconnector / short)
Check the supply power to the speaker and the resistance, then inspect the sound quality.

Removal
Front Door Speaker
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

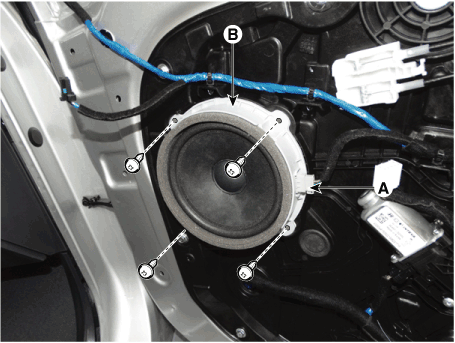

Remove the front door speaker (B) after disconnecting the connector (A) and loosening the screws.

Rear Door Speaker
1.
Disconnect the negative (-) battery terminal.
2.
Remove the Rear door trim.
(Refer to Body - "Rear Door Trim")
3.

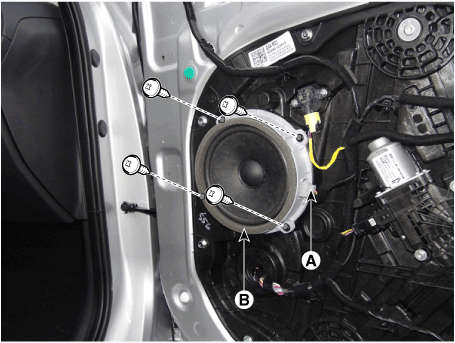

Remove the rear door speaker (B) after disconnecting the connector (A) and loosening the screws.

Front Tweeter Speaker
1.
Disconnect the negative (-) battery terminal.
2.

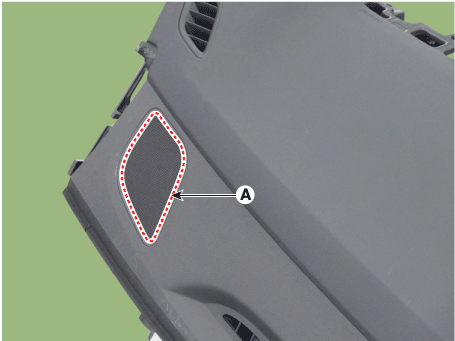

Using a scraper or remover, remove the front tweeter speaker cover (A).

Take care not to scratch the crash pad and related parts.

3.

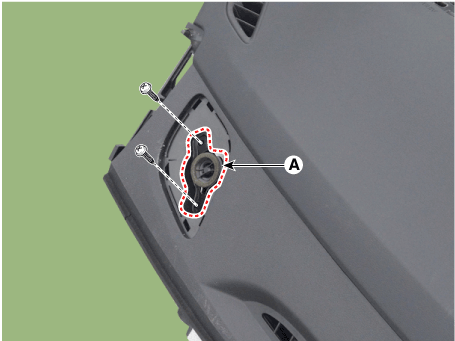

Remove the front tweeter speaker (A) after disconnecting the connector and loosening the screws.

Installation
Front Door Speaker
1.
Install the front door speaker.
2.
Install the front door trim.
3.
Connect the negative (-) battery terminal.
Rear Door Speaker
1.
Install the rear door speaker.
2.
Install the rear door trim.
3.
Connect the negative (-) battery terminal.
Front Tweeter Speaker
1.
Install the front tweeter speaker.
2.
Install the crash pad front tweeter speaker cover.
3.
Connect the negative (-) battery terminal.

Make sure that the speaker connectors are plugged in properly.
Check the AVN system for normal operation.
