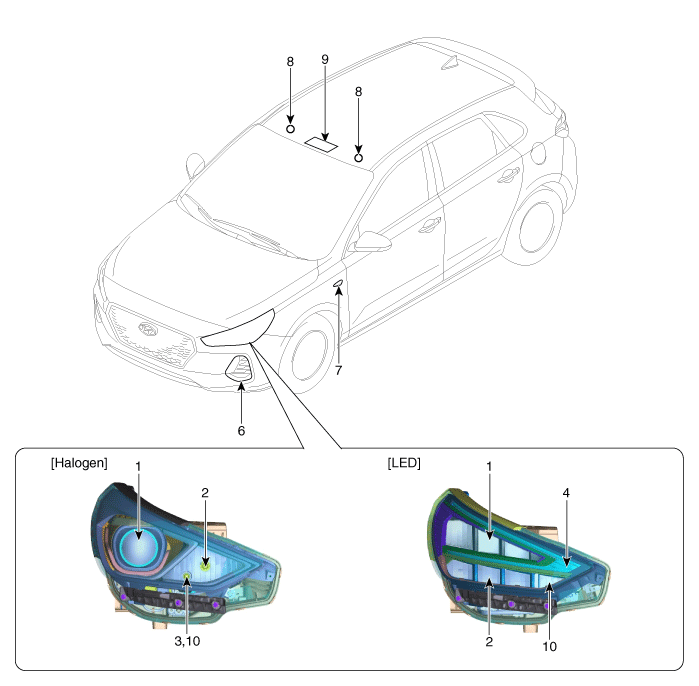

Component Location

1. Head lamp (Low)
2. Head lamp (High)
3. Position lamp
4. Turn signal lamp & Position lamp & daytime Running light (DRL)
5. Head lamp (High-LED)
 6. Turn signal lamp
7. Side turnsignal lamp
8. Vanity lamp
9. Map lamp
10. Static bending light (SBL)

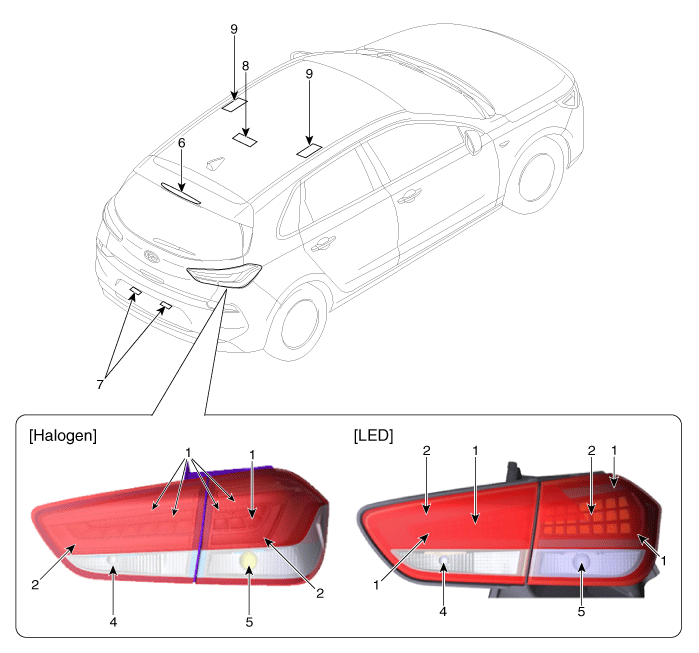

5Door

1. Tail lamp
2. Tail lamp/Stop lamp
3. Rear fog lamp
4. Back up lamp
5. Turn signal lamp
 6. High mounted stop lamp
7. Lisence lamp
8. Room lamp (NON Sunroof)
9. Room lamp (Sunroof)

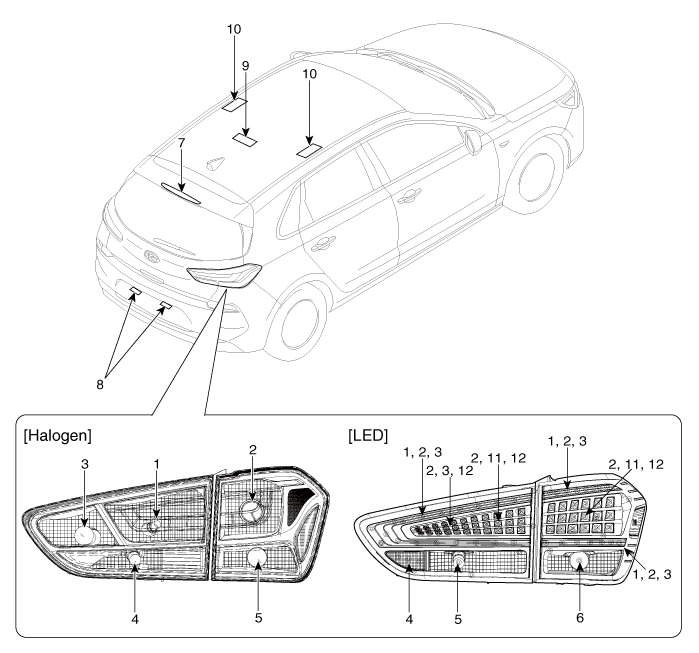

Wagon

1. Tail lamp (Stop ON)
2. Tail lamp (Stop OFF)
3. Tail lamp (Stop ON&Rear fog ON)
4. Rear fog lamp
5. Back up lamp
6. Turn signal lamp
 7. High mounted stop lamp
8. Lisence lamp
9. Room lamp (NON Sunroof)
10. Room lamp (Sunroof)
11. Stop lamp (Rear fog ON)
12. Stop lamp (Rear fog OFF)

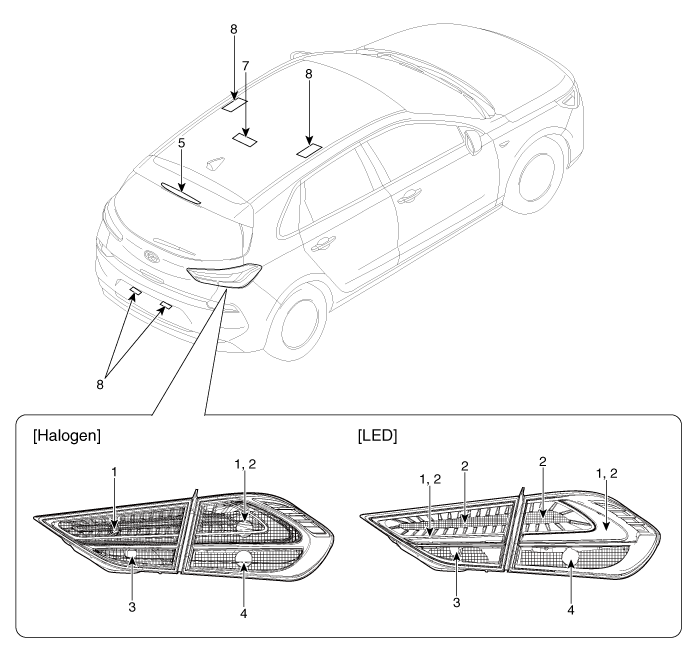

Fast Back

1. Tail lamp
2. Stop lamp
3. Back up lamp
4. Turn signal lamp
 5. High mounted stop lamp
6. Lisence lamp
7. Room lamp (NON Sunroof)
8. Room lamp (Sunroof)
