Hyundai i30 (PD) 2018-2025 Service Manual / Engine Electrical System / Charging System / Components and components location

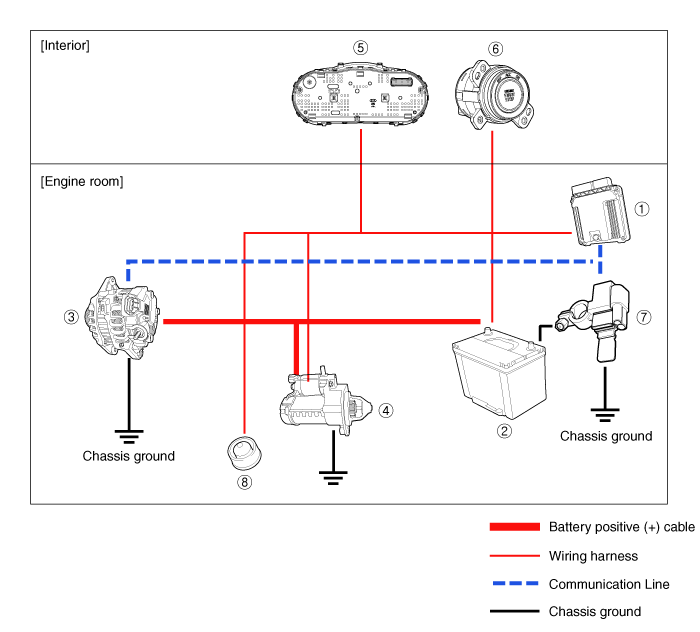

Components

1. ECM
2. Battery
3. Alternator
4. Starter
5. Instrument Cluster
6. Ignition switch or start/stop button
7. Battery sensor
8. Hood switch

    Description and operation

    Description The charging system includes a battery, an alternator with a built-in regulator, and the charging indicator light and wire...

    Troubleshooting

    Troubleshooting    • Be careful not to short-circuit the wiring by the body or other wirings...
