Hyundai i30 (PD) 2018-2025 Service Manual / Suspension System (NON-ECS) / Front Suspension System / Components and components location

Components Location

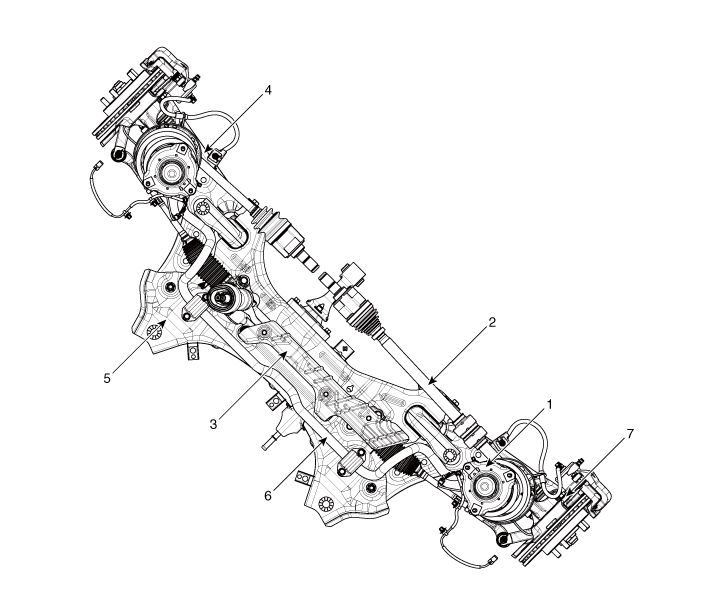

LHD

1. Front strut assembly
2. Drive shaft
3. Steering gearbox
4. Lower arm
 5. Sub frame
6. Stabilizer bar
7. Front knuckle assembly

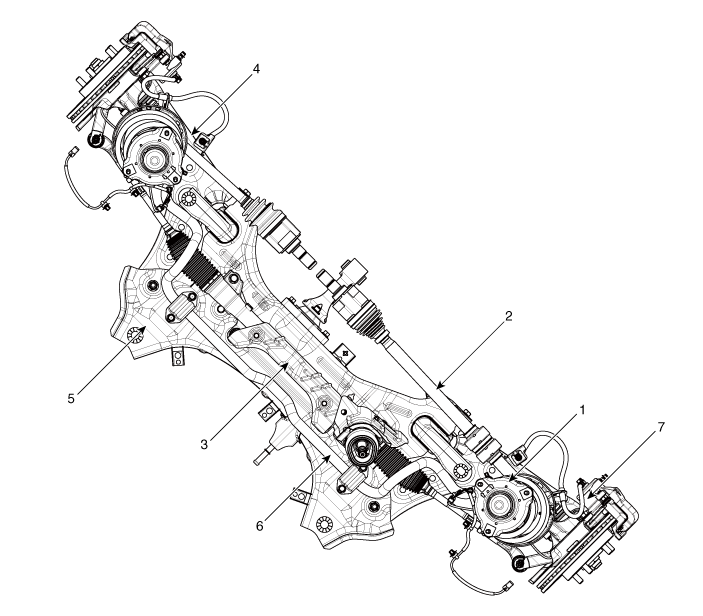

RHD

1. Front strut assembly
2. Drive shaft
3. Steering gearbox
4. Lower arm
 5. Sub frame
6. Stabilizer bar
7. Front knuckle assembly

    Front Suspension System

    ..

    Front Strut Assembly

    Components and components location Components 1. Strut assembly 2. Lock nut 3. Insulator 4. Strut bearing & Spring upper pad 5...
