Hyundai i-30: Audio / Components and components location

Hyundai i30 (PD) 2018-2025 Service Manual / Body Electrical System / Audio / Components and components location

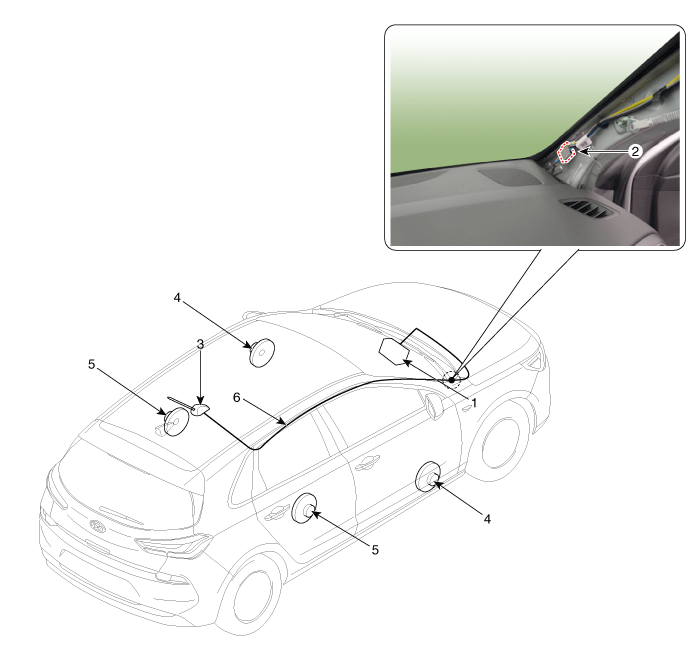

Component Location

1. Audio unit
2. Feeder cable joint connecotr
3. Roof antenna
4. Front door speaker
5. Rear door speaker
6. Feeder cable

    Specifications

    Specifications Audio Items AUDIO Model 1) RADIO / MP3 / Bluetooth 2) RADIO / MP3 / Bluetooth / RDS Power supply DC 14...

    Audio Unit

    Components and components location Components Audio Connector Pin Information NO Connector A Connector B 1 Rear left speaker (+) - 2 Front left speaker (+) - 3 Front right speaker (+) - 4 Rear right speaker (+) Steering wheel key 5 - - 6 Door open USB data (HI) 7 IGN 1 USB VCC 8 ILL (+) - 9 DETENT - 10 Rear left speaker (-) MIC signal (+) 11 Front left speaker (-) ACC 12 Front right speaker (-) Battery (+) 13 Rear right speaker (-) - 14 - - 15 - - 16 - Speed 17 ILL (-) Steering wheel key GND 18 Antenna Power USB data (LOW) 19 USB GND 20 - 21 - 22 MIC signal (-) 23 - 24 GND Display Audio Connector Pin Information No Connector A Connector B 1 Rear door speaker (Left +) - 2 Rear door speaker (Left -) Mic_Signal (+) 3 USB Ground - 4 USB Data_High - 5 USB Data_Low Antenna power 6 USB_VCC Illumination (+) 7 Camera video MM CAN (High) 8 - - 9 - - 10 AUX Audio R Battery (+) 11 AUX Detect Battery (+) 12 Steering wheel remote Ground 13 Front door speaker (Left +) Ground 14 Front door speaker (Left -) Mic_Ground 15 Front door speaker (Right -) Mic_Signal (-) 16 Front door speaker (Right +) - 17 - - 18 - Vehicle speed 19 - Illumination (-) 20 Camera power ground MM CAN (Low) 21 Camera video ground - 22 - ACC 23 - - 24 AUX Audio L - 25 AUX Audio ground - 26 Steering wheel remote grond Door open 27 Rear door speaker (Right -) - 28 Rear door speaker (Right +) - 29 - - 30 - - 31 - - 32 Camera power ground IGN 1 33 Camera shield ground - 34 - - 35 - - 36 Camera_Detect 37 - 38 - Repair procedures Removal    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
