Hyundai i-30: Cylinder Block / Fly Wheel

Hyundai i30 (PD) 2018-2025 Service Manual / Engine Mechanical System / Cylinder Block / Fly Wheel

Repair procedures
Removal
1.
Remove the dual clutch transmission assembly.
(Refer to Double Clutch Transmission (DCT) System - "Double Clutch Transmission (DCT)")
2.

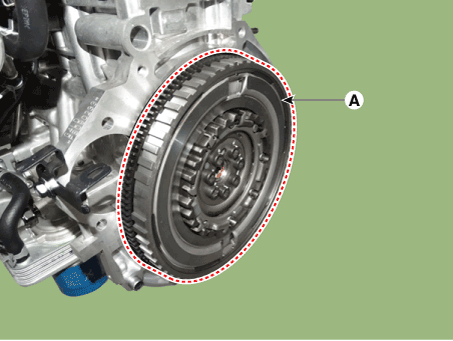

Remove the flywheel (A).
Tightening torque :
73.5 - 83.3 N.m (7.5 - 8.5 kgf.m, 54.2 - 61.4 Ib-ft)


Do not reuse the bolts.
3.
Install in the reverse order of removal.
