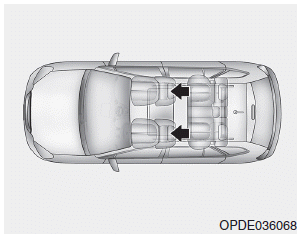

Hyundai i30. Front seat head restraints

The driver’s and front passenger’s seats are equipped with adjustable head restraints for the passengers safety and comfort.

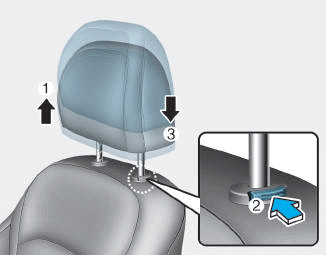

Adjusting the height up and down

Hyundai i30. Front seat head restraints

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. asLower the head restraint to the desired position (3).

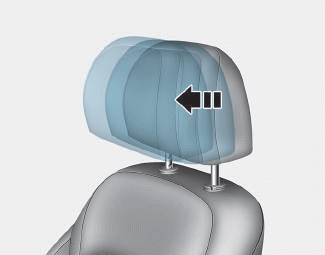

Forward and rearward adjustment

Hyundai i30. Front seat head restraints

The head restraint may be adjusted forward to 3 different positions by pulling the head restraint forward to the desired detent. To adjust the head restraint to it’s furthest rearwards position, pull it fully forward to the farthest position and release it.

Hyundai i30. Front seat head restraints

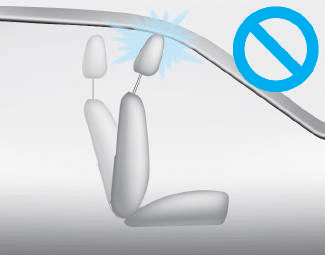

NOTICE

If you recline the seatback towards the front with the head restraint and seat cushion raised, the head restraint may come in contact with the sunvisor or other parts of the vehicle.

Removal/Reinstall

Hyundai i30. Front seat head restraints

■ Type A

Hyundai i30. Front seat head restraints

■ Type B

To remove the head restraint:

1. Recline the seatback (2) using the seatback angle knob or switch (1).

2. Raise the head restraint as far as it can go.

3. Press the head restraint release button (3) whilst pulling the head restraint up (4).

WARNING

NEVER allow anyone to travel in a seat with the head restraint removed.

Hyundai i30. Front seat head restraints

■ Type A

Hyundai i30. Front seat head restraints

■ Type B

To reinstall the head restraint :

1. Recline the seatback.

2. Put the head restraint poles (2) into the holes whilst pressing the release button (1).

3. Adjust the head restraint to the appropriate height.

4. Recline the seatback (4) using the seatback angle knob or switch (3).

WARNING

Always make sure the head restraint locks into position after reinstalling and adjusting it properly.
