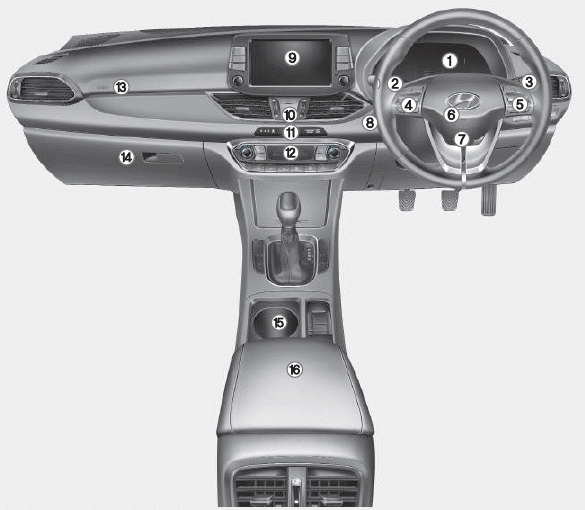

Hyundai i30. Instrument panel overview

1. Instrument cluster
2. Light control/Turn signals
3. Wiper/Washer
4. Steering wheel audio controls/Bluetooth® wireless technology hands-free controls
5. Speed limiter controls/Cruise controls/Smart cruise controls
6. Horn
7. Driver’s front air bag
8. Key ignition switch/Engine Start/Stop button
9. Audio system/Navigation system
10. Hazard warning flasher switch
11. Central door lock switch
12. Manual climate control system/Automatic climate control system
13. Passenger’s front air bag
14. Glove box
15. Cup holder
16. Console box

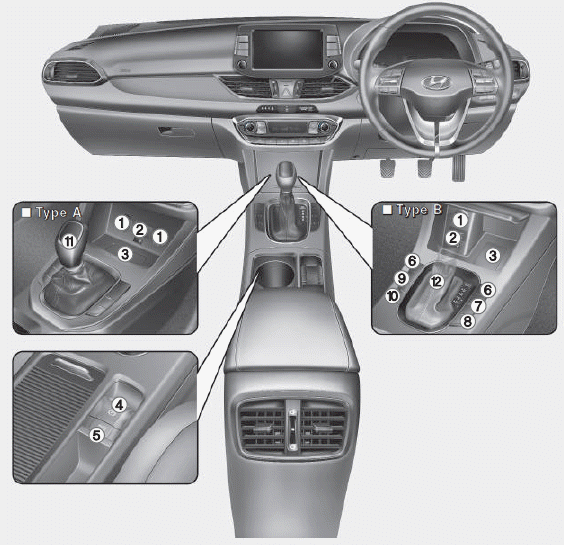

Hyundai i30. Instrument panel overview

1. Power outlet
2. Aux, USB and iPod®
3. Wireless mobile phone charging system
4. Electronic parking brake (EPB) switch
5. Auto Hold
6. Seat warmer/Air ventilation seat
7. Heated steering wheel
8. Drive mode button
9. Parking Distance Warning (Reverse/Forward) button/Parking Distance Warning (Reverse) OFF button
10. Idle stop and go (ISG) OFF button
11. Manual transmission shift lever
12. Automatic transmission shift lever/Dual clutch transmission shift lever
