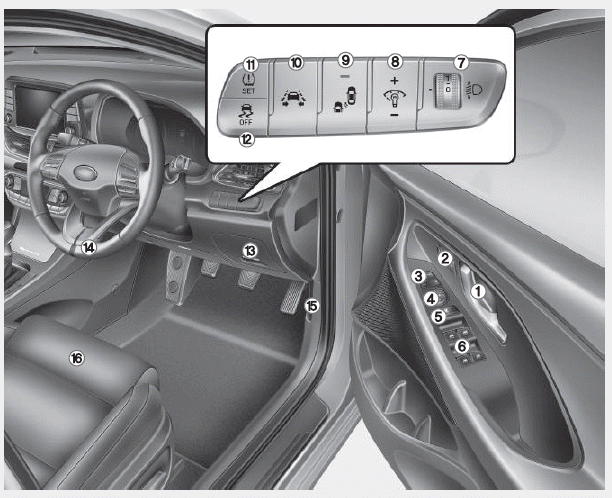

Hyundai i30. Interior overview

1. Inside door handle
2. Driver position memory system
3. Outside rearview mirror folding
4. Outside rearview mirror control
5. Power window lock switch
6. Power window switches
7. Headlight levelling device
8. Instrument panel illumination control switch
9. Blind-spot Collision Warning (BCW)
10. Lane keeping assist (LKA) system/Lane departure warning (LDW) system
11. TPMS SET button
12. ESC OFF button
13. Fuse box
14. Steering wheel
15. Bonnet release lever
16. Seat

    Exterior overview

    ■ Front view • 5 Door, Wagon 1. Door locks 2. Panorama sunroof 3. Bonnet 4. Outside rearview mirror 5. Head lamp 6. Daytime Running Light (DRL) 7...

    Instrument panel overview

    1. Instrument cluster 2. Light control/Turn signals 3. Wiper/Washer 4. Steering wheel audio controls/Bluetooth® wireless technology hands-free controls 5...
