Hyundai i-30: LCD display messages / Lights mode. Wiper

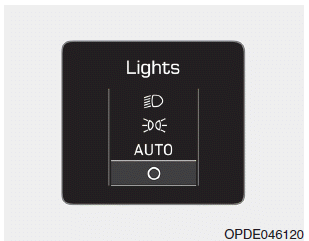

Lights mode

This indicator displays which exterior
light is selected using the lighting
control.

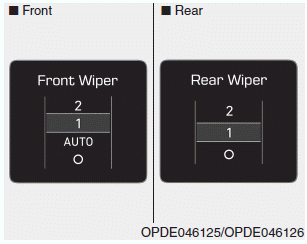

Wiper

This indicator displays which wiper
speed is selected using the wiper
control.
Door, Bonnet, Tailgate open
This warning is displayed indicating
which door, or bonnet, or tailgate is
open.
CAUTION
Before driving the vehicle, you
should confirm that the door/
bonnet/tailgate is fully closed...
Low Tyre Pressure
This warning message is displayed if
the tyre pressure is low. The corresponding
tyre on the vehicle will be
illuminated.
Turn FUSE SWITCH on
This warning message is displayed if
the fuse switch located on the fuse
box under the steering wheel is OFF...
