Hyundai i-30: Ignition System / Ignition Coil

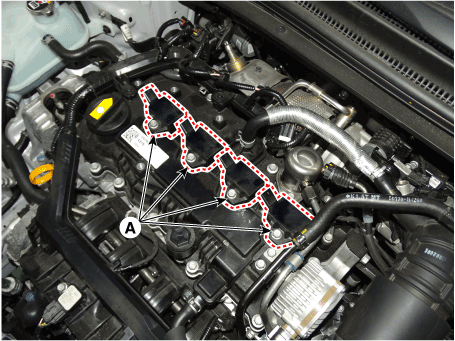

The ignition coil is mounted on the top side of the cylinder head cover end. The ignition coil consists of the primary coil that receives battery power and the secondary coil that generates high voltage.

When the current in the primary coil is cut off by the ignition signal of the ECM, the rapid change of the magnetic flux by the mutual induction action is induced to the secondary coil and high voltage is generated depending on the coil winding ratio.

This high voltage generated from the secondary coil is caught in the spark plug gap and discharges as the electric field is destroyed to generate a spark.

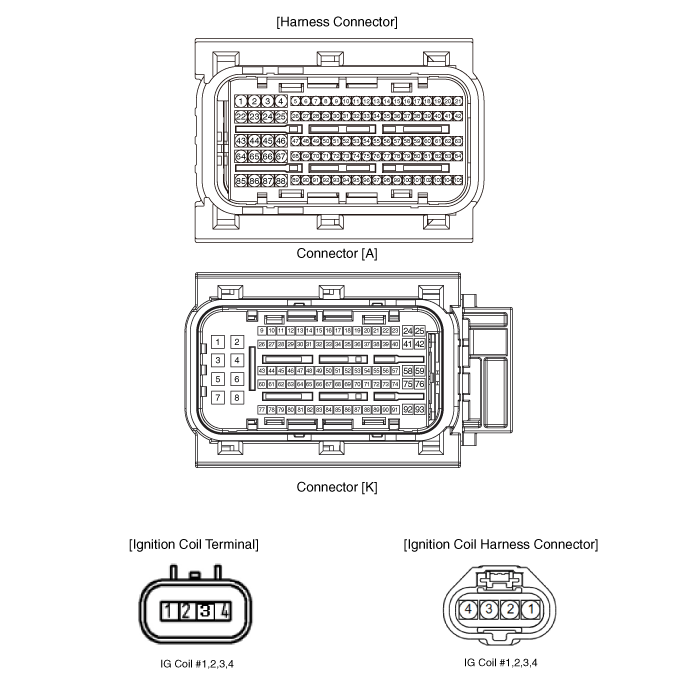

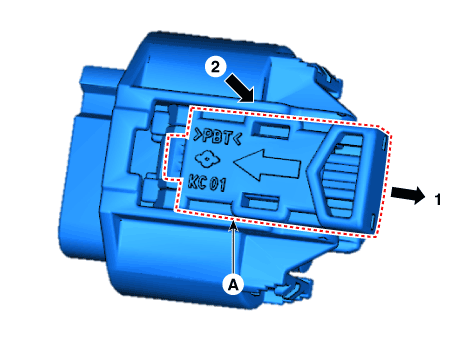

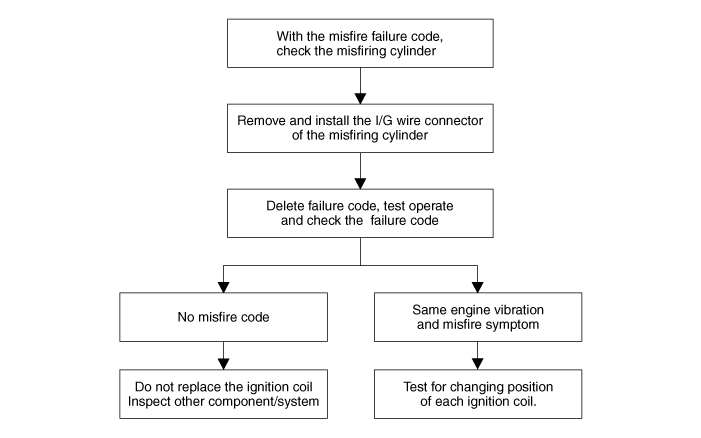

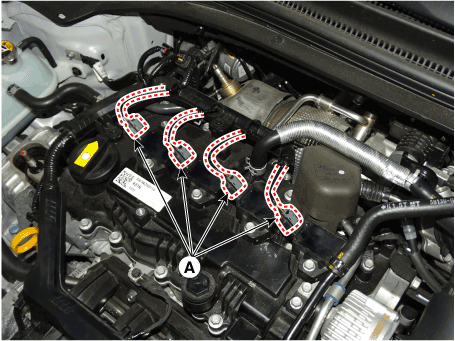

Connector assembly status test

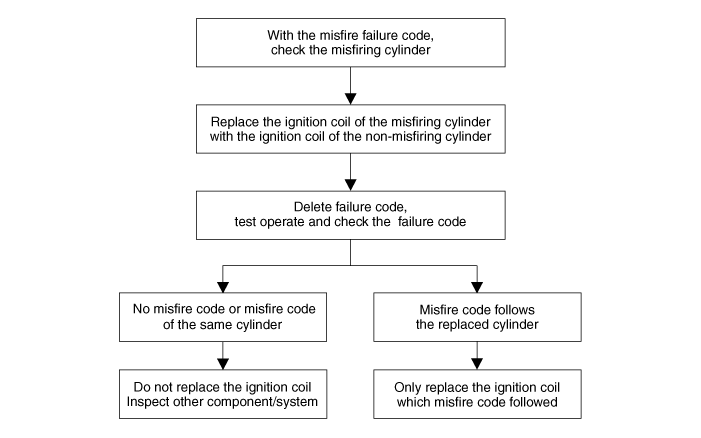

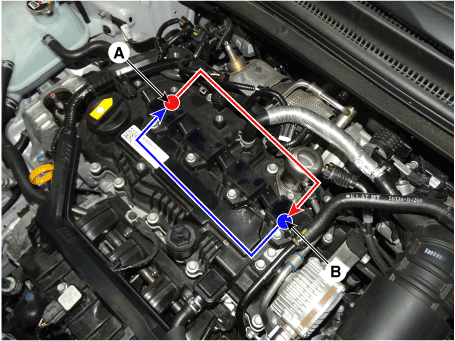

Test for changing position of each ignition coil

A : Ignition coil w/ misfire code

B : Ignition coil w/o misfire code

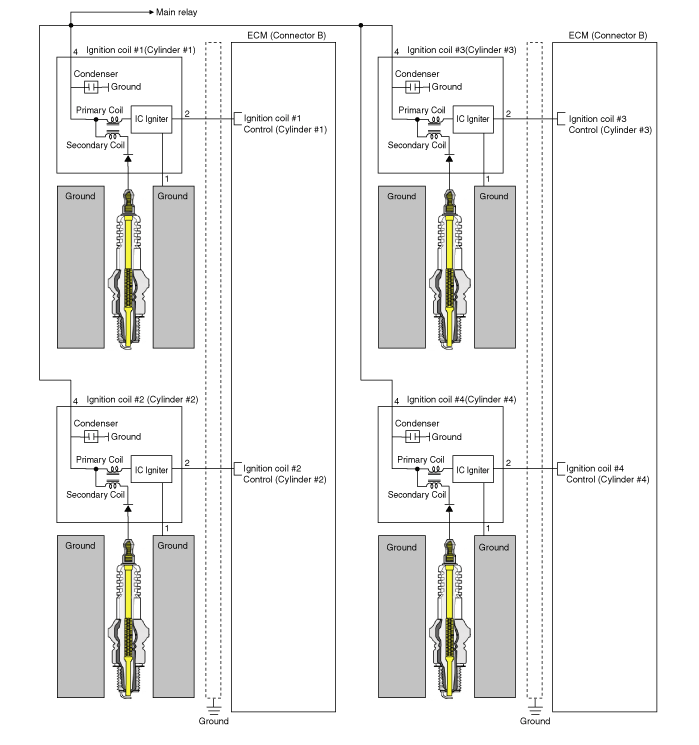

Ignition Coil #1 (Cylinder #1)

Ignition Coil #2 (Cylinder #2)

Ignition Coil #3 (Cylinder #3)

Ignition Coil #4 (Cylinder #4)

Repair procedures

On-vehicle Inspection Inspect ignition coil assembly and Perform spark test 1. Check for DTCs.    • If a DTC is present, perform troubleshooting in accordance with the procedure for that DTC...
