Repair procedures
Inspection
1.

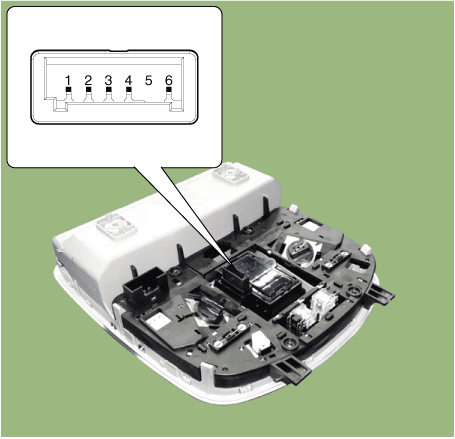

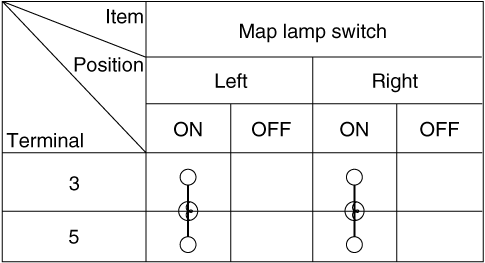

Remove the overhead console lamp assembly and check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the mounting screws (2EA).

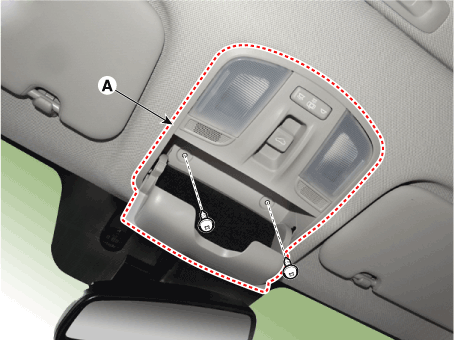

And then remove the overhead console (A).

3.

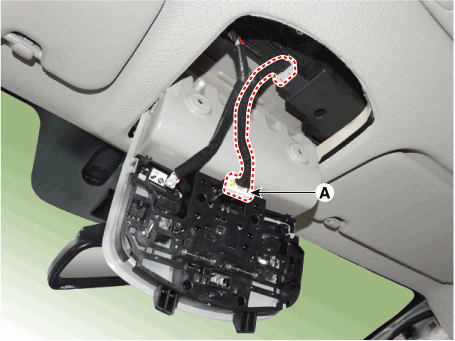

Remove the overhead console after disconnecting the connector (A).

4.

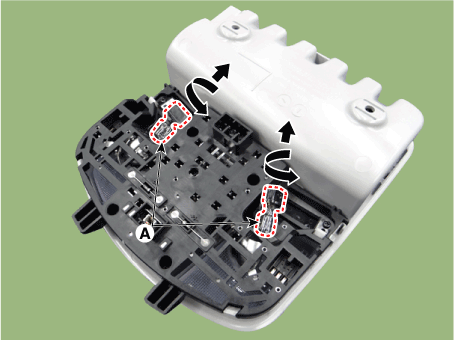

Remove the overhead console lamp (A) by turning the socket.

Installation
1.
Install the overhead console lamp after connecting the connector.
2.
Install the lens after tightening 2 screws.
