Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the outside rear combination cover.
3.

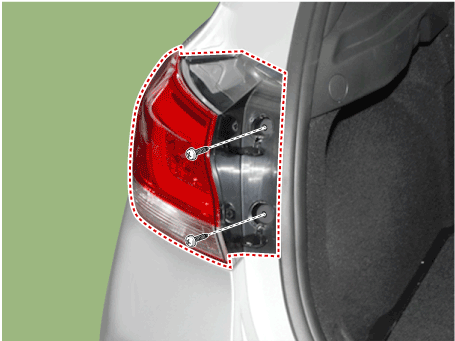

Remove the outside rear combination lamp assembly after loosening the bolts.

4.
Remove the outside rear combination lamp assembly after disconnecting the connector.

5.

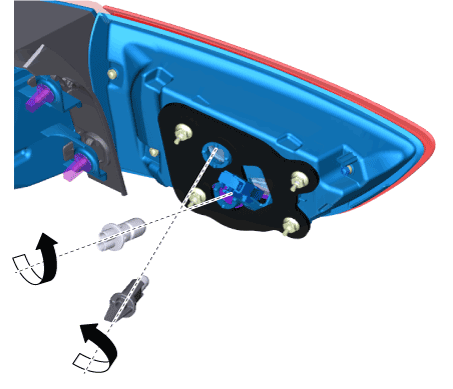

Remove the bulb (A) after turning it in the counter clock-wise direction.

6.

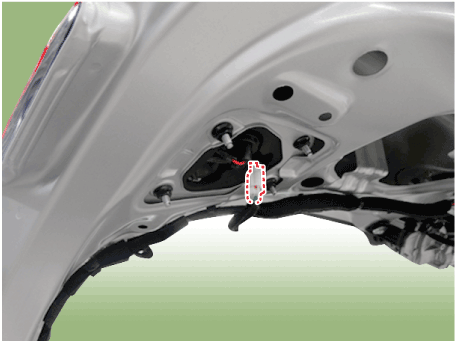

Disconnect the inside rear combination lamp connector (A) after removing the tailgate cover.

7.

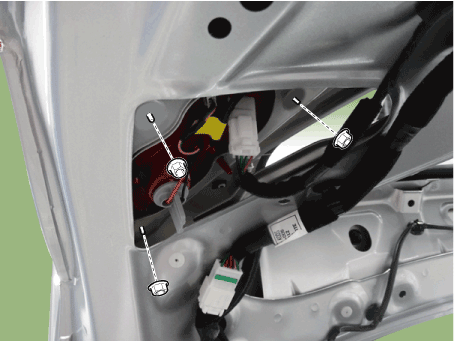

Remove the the inside rear combination lamp assembly after loosening the nuts.

8.

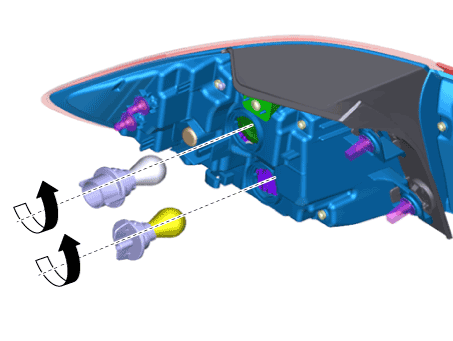

If it is necessary to replace the bulb, remove the bulb after removing the tailgate cover.

Installation
1.
Install the inside combination lamp assembly after assembling the bulb.
2.
Install the rear combination lamp assembly after assembling the bulbs and connecting the lamp connector.
