Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securelysupported.
2.

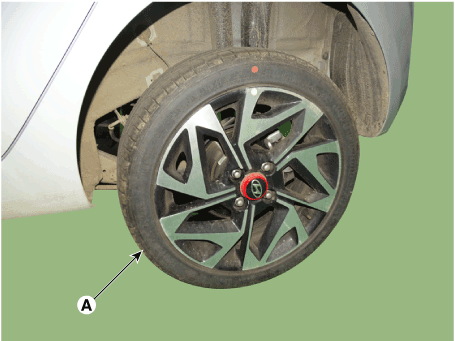

Remove the rear wheel and tire (A) from the rearhub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)


Be careful not to damage the hub bolts whenremoving the rear wheel and tire (A).
3.

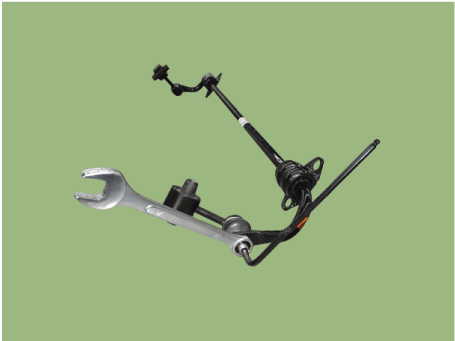

Loosen the nut and then remove the rear stabilizerlink (A).
Tightening torque :
58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)

When loosening the nut (A), fix the outer hexagonof stabilizer bar link.

4.

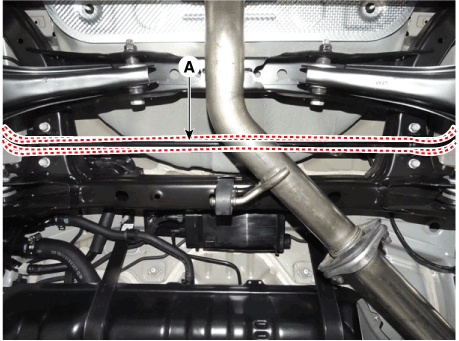

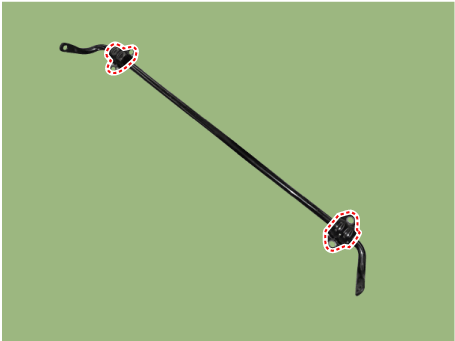

Loosen the mounting bolt and then remove thestabilizer bar (A) from the rear cross member.
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

5.

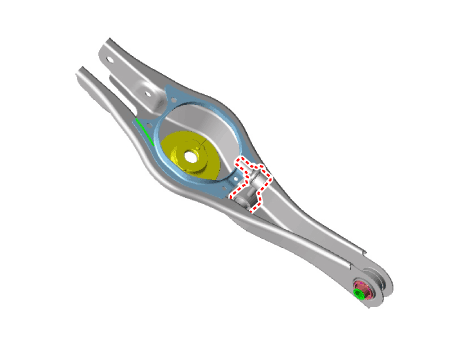

Remove the stabilizer link from the rear lower arm.
Tightening torque :
19.6 - 29.4 N.m (2.0 - 3.0 Kgf.m, 14.5 - 21.7 lb-ft)

6.
Remove the bushing.

7.
Installation in the reverse of removal.
Inspection
1.
Check the rear stabilizer bar for deformation.
2.
Check the rear stabilizer link ball joint for damage.
