Repair procedures

Removal

1.	Turn the ignition switch OFF and disconnect the negative (-) battery cable.

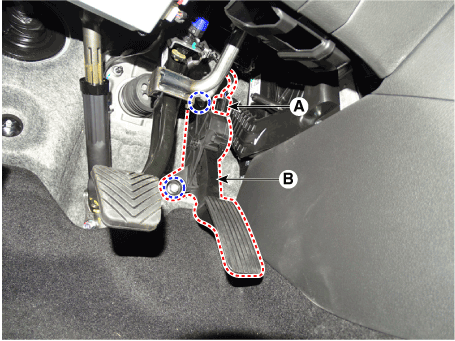

2.	Disconnect the accelerator position sensor connector (A).

Remove the installation nuts, and then remove the accelerator pedal module (B).

Tightening torque :

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

Installation

1.	Install in the reverse order of removal.
