Hyundai i-30: Engine Electrical System / Specifications

Hyundai i30 (PD) 2018-2024 Service Manual / Engine Electrical System / Specifications

Service Data
Ignition System
Ignition Coil
Item
Specification
Rated Voltage (V)
 13.5V
Secondary Coil [Engine 1000RPM standard]
Input voltage (V)
13.5V
Dwell Time (ms)
5.91
Spark current (mA)
More than 133
Spark duration time (ms)
More than 1.67
Igniter voltage (V)
600 - 680
Pin
4

Item
Specification
Engine Speed (RPM)
 1000
 2000
 3000
 4000
 5000
 6000
 7000
Dwell Time (ms)
 5.91
 5.22
 4.45
 3.99
 3.64
 3.35
 3.15
Secondary Coil Voltage (kV)
 44
 44
 44
 43
 41
 40
 39

Charging System

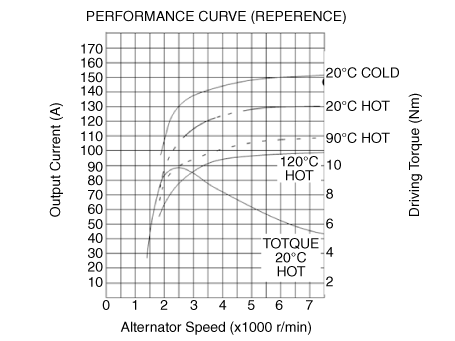

Alternator
Item
Specification
Rated voltage
 13.5 V, 130 A
Speed in use
 1,000 - 18,000rpm
Pin
 1 (LIN)
Pulley Type
OAP pulley

Spark plug
Item
Specification
Type
 SILKR8J8GS
Gap
 0.7 - 0.8 mm
(0.0276 - 0.0315 in.)
Electrode Material
 IRIDIUM

Battery
▷ CMF60L-DIN
Item
Specification
Model type
 CMF60L-DIN
Capacity [20HR/5HR] (AH)
 60 / 48
Cold Cranking Amperage (A)
 550 (SAE) / 440 (EN)
Reserve Capacity (Min)
 92
Specific Gravity
1.27 ~ 1.29 [25°C (77°F)]
Voltage (V)
12

▷ AGM70L-DIN
Item
Specification
Model type
 AGM70L-DIN
Capacity [20HR/5HR] (AH)
 70 / 56
Cold Cranking Amperage (A)
 760 (SAE) / 760 (EN)
Reserve Capacity (Min)
 120
Specific Gravity
1.30 ~ 1.32 [25°C (77°F)]
Voltage (V)
12

▷ CMF45L-DIN
Item
Specification
Model type
 CMF45L-DIN
Capacity [20HR/5HR] (AH)
 45 / 36
Cold Cranking Amperage (A)
 410 (SAE) / 410 (EN)
Reserve Capacity (Min)
 80
Specific Gravity
1.27 ~ 1.29 [25°C (77°F)]
Voltage (V)
12


•

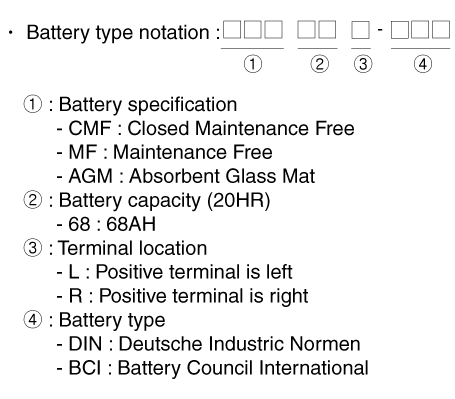

Model type description
•
Cold Cranking Ampere (CCA) : A rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
–
The maximum current that a fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds while maintaining a voltage of at least 7.2 volts for a 12-volt battery.
–
The higher the CCA rating, the greater the starting power of the battery.
•
RESERVE CAPACITY (RC) : A battery industry rating that defines the battery's ability to power a vehicle with an inoperative alternator or fan belt.
–
The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
–
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

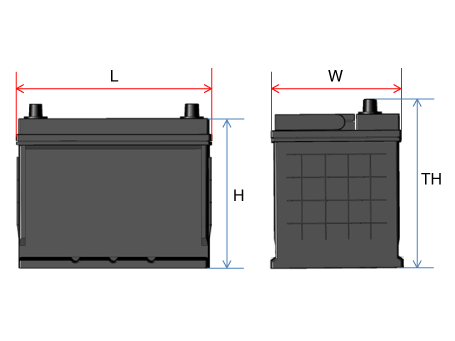

[BCI Type]
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
28/35
 188 - 192
 126 - 130
 198 - 202
 218 - 222
32/40
 194 - 198
 133 - 137
 199 - 203
 223 - 227
36/45
 203 - 207
 173 - 177
 200 - 204
 221 - 225
44/55
 213 - 217
 173 - 177
 198 - 202
 218 - 222
48/60
 228 - 232
 173 - 177
 200 - 204
 221 - 225
54/68
 258 - 262
 173 - 177
 198 - 202
 220 - 224
56/70
 258 - 262
 173 - 177
 198 - 202
 223 - 227
64/80
 274 - 278
 170 - 174
 198 - 202
 221 - 225
70/88
 349 - 353
 172 - 176
 186 - 200
 183 - 187
72/90
 300 - 304
 170 - 174
 200 - 204
 221 - 225
76/95
 294 - 298
 172 - 176
 198 - 202
 220 - 224
80/100
 326 - 330
 170 - 174
 203 - 207
 225 - 229

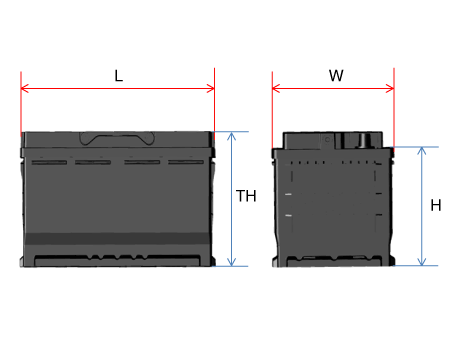

[DIN Type]
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
36/45
 205 - 207
 173 - 175
 164 - 168
 188 - 190
48/60
 205 - 207
 173 - 175
 164 - 168
 188 - 190
54/68
 205 - 207
 173 - 175
 164 - 168
 188 - 190
64/80
 205 - 207
 173 - 175
 164 - 168
 188 - 190
72/90
 205 - 207
 173 - 175
 164 - 168
 188 - 190
80/100
 205 - 207
 173 - 175
 164 - 168
 188 - 190
88/110
 205 - 207
 173 - 175
 164 - 168
 188 - 190

[AGM DIN Type]
Capacity
(5HR/20HR)
Length
Width
Height
Total Height
L (mm)
W (mm)
T (mm)
TH (mm)
40/50
 205 - 207
 173 - 175
 164 - 168
 188 - 190
48/60
 227 - 229
 173 - 175
 164 - 168
 188 - 190
56/70
 276 - 278
 173 - 175
 164 - 168
 188 - 190
64/80
 312 - 314
 173 - 175
 164 - 168
 188 - 190
72/90
 351 - 353
 173 - 175
 164 - 168
 188 - 190
84/105
 392 - 394
 173 - 175
 164 - 168
 188 - 190

Starting System
Starter
▷ [ISG Type]
Item
Specification
Rated voltage
 12V, 1.2 kW
The number of pinion teeth
 13
Performance
 Ampere
 Max. 90A
[No-load, 11.5V]
 Speed
 Min. 3,500 rpm

▷ [Non-ISG Type]
Item
Specification
Rated voltage
 12V, 0.9 kW
The number of pinion teeth
 11
Performance
[No-load, 11.5V]
 Ampere
 Max. 85A
Speed
 Min. 3,300 rpm
