Hyundai i-30: Driver attention warning (DAW) system / System malfunction
DAW (Driver Attention Warning)
system

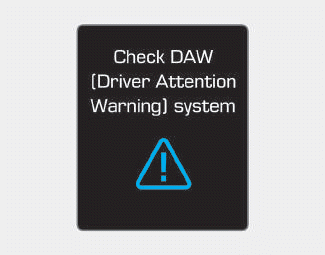

When the "Check DAW (Driver
Attention Warning) system" warning
message appears, the system is not
working properly. In this case, we recommend
that you have the vehicle
inspected by a HYUNDAI authorised
repairer.
WARNING
- The Driver Attention Warning
(DAW) system is not a substitute
for safe driving practices,
but a convenience function
only. It is the responsibility of
the driver to always drive cautiously
to prevent unexpected
and sudden situations from
occurring. Pay attention to the
road conditions at all times.
- The system may suggest a
break according to the driver’s
driving pattern or habits
even if the driver doesn’t feel
fatigue.
- The driver, who feels fatigued,
should take a break, even
though there is no break suggestion
by the Driver
Attention Warning (DAW) system.
NOTICE
The Driver Attention Warning
(DAW) system utilises the camera
sensor on the front windscreen for
its operation. To keep the camera
sensor in the best condition, you
should observe the followings:
- NEVER install any accessories
or stickers on the front windscreen,
nor tint the front windscreen.
- NEVER locate any reflective
objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a malfunction
of the Driver Attention
Warning (DAW) system.
- Pay extreme caution to keep the
camera sensor out of water.
- NEVER disassemble the camera
assembly, nor apply any impact
on the camera assembly.
- Do not disassemble the camera
temporarily for tinted window or
attaching any types of coatings
and accessories.
If you disassemble a camera and
assemble it again, we recommend
that you take your vehicle
to a HYUNDAI authorised repairer
and have the system checked
for calibration.
CAUTION
The Driver Attention Warning
(DAW) system may not properly
operate with limited alerting in
the following situations:
- The lane detection performance
is limited. (For more
information, refer to "Lane
Keeping Assist (LKA) system"
in this chapter.)
- The vehicle is violently driven
or is abruptly turned for
obstacle avoidance (e.g. construction
area, other vehicles,
fallen objects, bumpy road).
- Forward drivability of the
vehicle is severely undermined
(possibly due to wide
variation in tyre pressures,
uneven tyre wear-out, toein/
toe-out alignment).
- The vehicle drives on a curvy
road.
- The vehicle drives through a
windy area.
- The vehicle drives on a
bumpy road.
- The vehicle is controlled by
the following driving assist
systems:
- Lane Keeping Assist (LKA)
system
- Forward Collision-avoidance
Assist (FCA) system
- Smart Cruise Control (SCC)
system
CAUTION
Playing the vehicle audio system
at high volume may offset
the Driver Attention Warning
(DAW) system warning sounds.
The Driver Attention Warning (DAW)
system enters the ready status and
displays the 'Standby' screen in the
following situations.
- The camera does not detect the
lanes...
