Hyundai i-30: Interior features / Wireless mobile phone charging system

Hyundai i30 (PD) 2018-2022 Owner's Manual / Convenient features of your vehicle / Interior features / Wireless mobile phone charging system

Hyundai i30. system

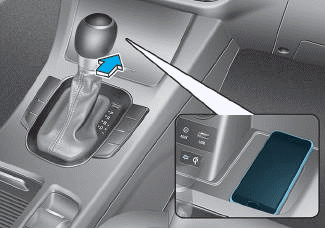

■ Type A

Hyundai i30. system

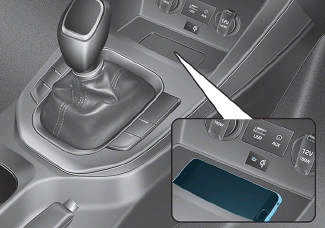

■ Type B

There is a wireless mobile phone charger inside the front console.

The system is available when all doors are closed, and when the ignition switch is in the ACC/ON position.

To charge a mobile phone

The wireless mobile phone charging system charges only the Qi-enabled mobile phones (Hyundai i30. system). Read the label on the mobile phone accessory cover or visit your mobile phone manufacturer’s website to check whether your mobile phone supports the Qi technology.

The wireless charging process starts when you put a Qi-enabled mobile phone on the wireless charging unit.

1. Remove other items, including the smart key, from the wireless charging unit. If not, the wireless charging process may be interrupted.

2. The indicator light is orange when the phone is charging. The indicator light turns green when phone charging is complete.

3.You can turn ON or OFF the wireless charging function in the User Settings mode on the instrument cluster. For further information, refer to the “LCD Display Modes” in this chapter.

If your phone is not charging:

- Slightly change the position of the mobile phone on the charging pad.
- Make sure the indicator light is orange.

Depending on the mobile phone type, the indicator light may not turn green even though the charging is complete.

The indicator light will blink orange for 10 seconds if there is a malfunction in the wireless charging system.

In this case, temporarily stop the charging process, and re-attempt to wirelessly charge your mobile phone again.

The system warns you with a message on the LCD display if the mobile phone is still on the wireless charging unit after the engine is turned OFF and the front door is opened.

NOTICE

  • The wireless mobile phone charging system may not support certain mobile phones, which are not verified for the Qi specification (Hyundai i30. system).
  • Locate your cell phone well in the middle of the wireless mobile phone charging system. Even when your cell phone locates slightly to one side, the charging speed may decrease.
  • The wireless charging process may temporarily stop, when a smart key function operates (i.e. starting the engine, opening the doors, closing the doors).
  • For certain cell phones, the indicator colour may not change to green, even when the wireless charging process is properly completed.
  • The wireless charging process may temporarily stop, when temperature abnormally increases inside the wireless mobile phone charging system. The wireless charging process restarts, when temperature falls to a certain level.
  • The wireless charging process may temporarily stop when there is any metallic item, such as a coin, between the wireless mobile phone charging system and a mobile phone.
