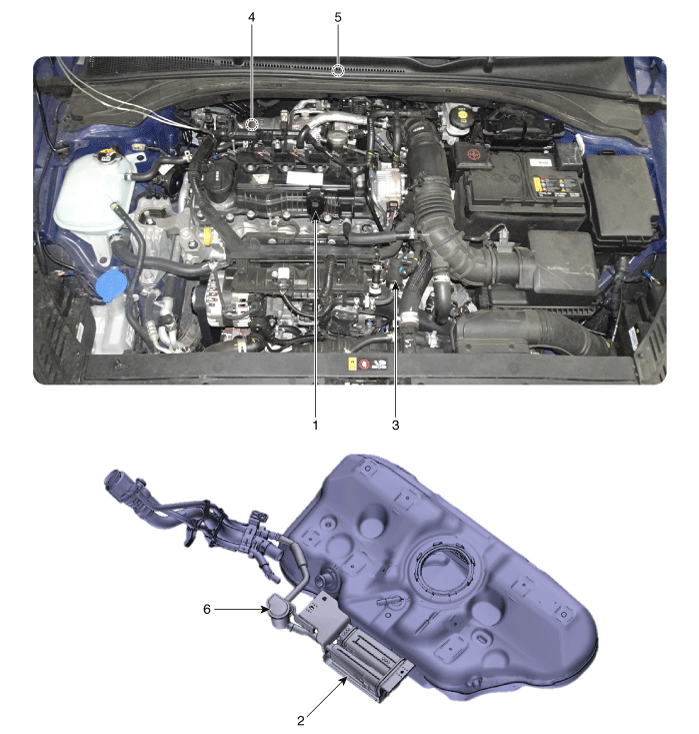

Components Location

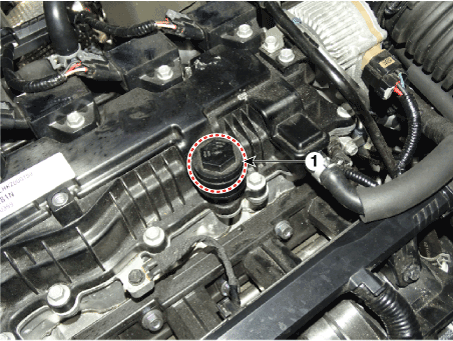

1. PCV Valve

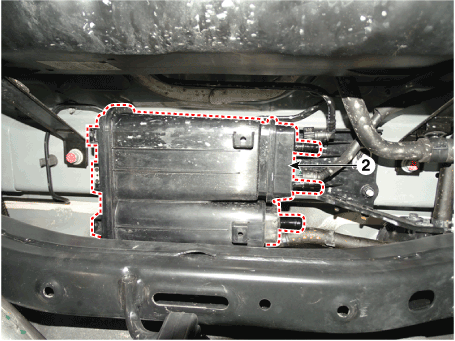

2. Canister

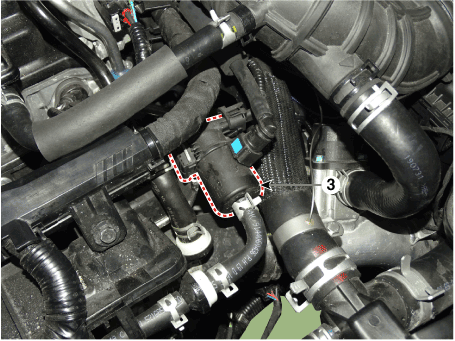

3. Purge control solenoid valve (PCSV)

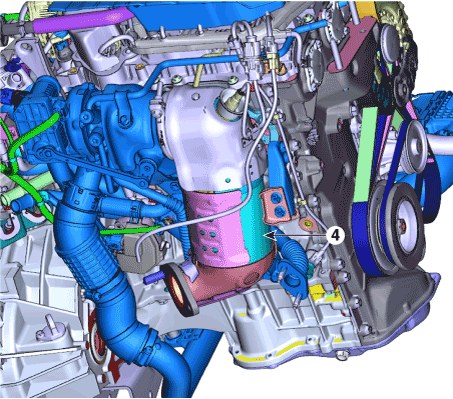

4. Catalytic converter (WCC)

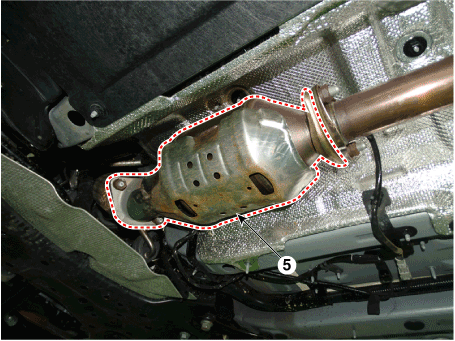

5. GPF (Gasoline particulate filter)

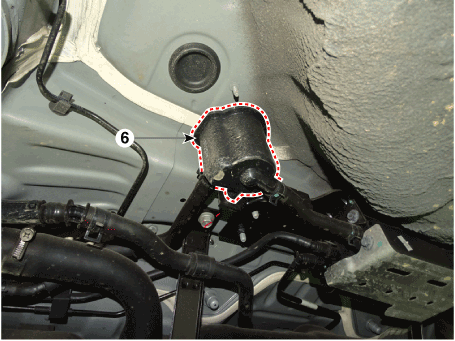

6. Fuel tank air filter

1. PCV Valve
2. Canister

3. Purge control solenoid valve (PCSV)
4. Catalytic converter (WCC)

5. GPF (Gasoline particulate filter)
6. Fuel tank air filter


    Schematic diagrams

    ..

    Crankcase Emission Control System

    ..
